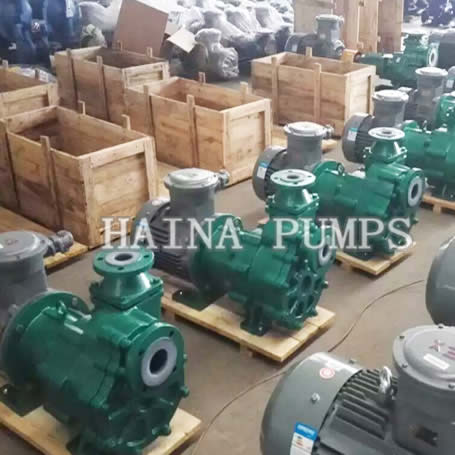

Product name: ZMD fluorine plastic self-priming Magnetic pump,ZMD pump,ZMD self-priming magnetic pump
Working temperature: -20℃ to 100℃,above this temperature,please contact us.
Working Conderation: Strong acid corrosion,if alkaline,please contact us.
Application:
Wildly use on safe transport area of acid, alkali, toxic, flammable and explosive liquid ,or pure/expensive chemical medium, is the best energy saving products in chemical area.

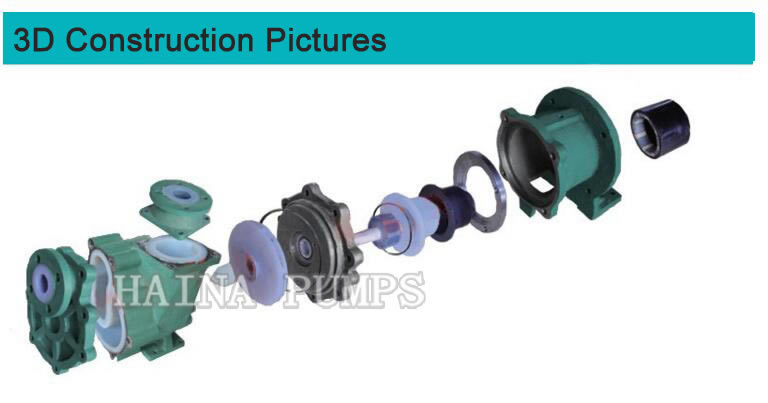

ZMD self-priming magnetic pump is the perfect combination with magnetic pump. Using magnetic coupling dynamic seals, does not exist. So thoroughly that can eliminate the general shaft driving centrifugal pumps running,the shaft seal leakage phenomenon. And has good self-priming function. zmd pump manufacturer is haina pumps flow components USES corrosion resistance fluorine material. So widely used in pharmaceutical, foodstuff, alkali manufacturing,printing, coating, etc and inflammable, explosive,toxic, and volatile organic solvent and precious liquids.
Operating temperature: -20℃~100℃
ZMD self-priming magnetic pump parameter table
| No.: | Model: | Flow | Head | Efficient | NPSH | Inlet/
outlet |
Self priming height | Self priming time | Speed | Motor Power | Weight |
| (m3/h) | (m) | % | (m) | mm | m | s | (rpm) | KW | KG | ||
| 1 | 32ZMD-25F | 3.6 | 25 | 55 | 4.0 | 32X25 | 1.5 | <150 | 2900 | 2.2 | 65 |
| 2 | 40ZMD-32F | 6 | 32 | 46 | 3.0 | 40X25 | 3.0 | <150 | 2900 | 4 | 125 |
| 3 | 50ZMD-32F | 15 | 32 | 44 | 3.0 | 50X50 | 3.0 | <180 | 2900 | 5.5 | 180 |
| 4 | 50ZMD-45F | 12.5 | 48 | 53 | 3.0 | 50X50 | 3.0 | <200 | 2900 | 7.5 | 170 |
| 5 | 65ZMD-32F | 30 | 32 | 52 | 3.5 | 65X50 | 3.0 | <200 | 2900 | 7.5 | 200 |
| 6 | 65ZMD-45F | 25 | 45 | 52 | 4.5 | 65X40 | 3.0 | <200 | 2900 | 11 | 290 |
| 7 | 80ZMD-32F | 60 | 32 | 55 | 4.5 | 80X65 | 3.0 | <200 | 2900 | 11 | 280 |
| 8 | 80ZMD-45F | 50 | 45 | 50 | 4.5 | 80X65 | 3.0 | <200 | 2900 | 18.5 | 320 |
