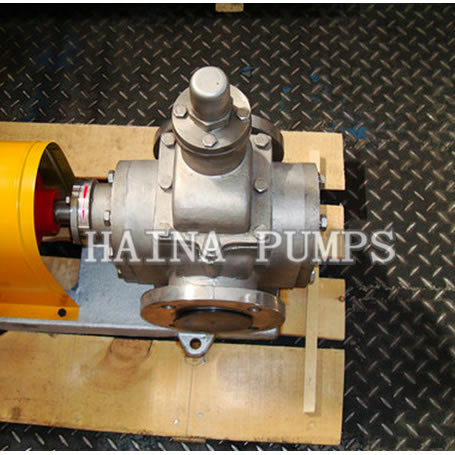

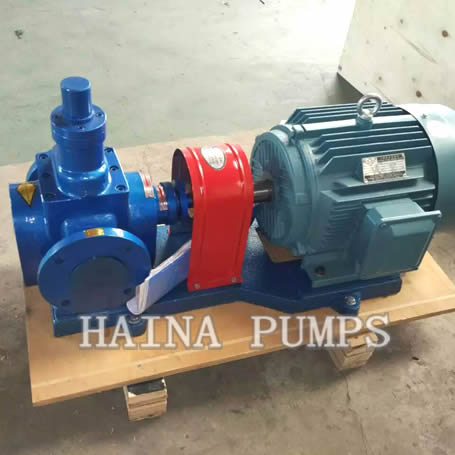

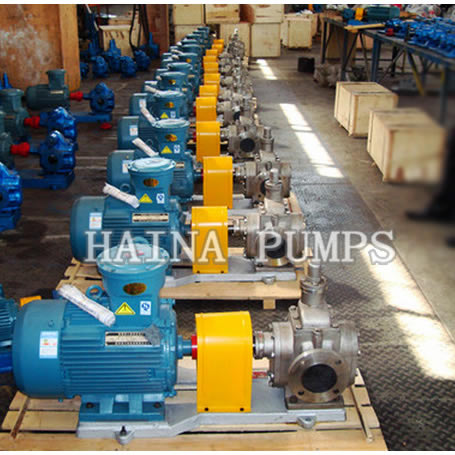

This company produces the haina brand YCB gear oil pump after years on the market with its unique efficacy, reliable performance, stable quality was welcomed by the masses of users and the high praise! YCB gear pump by the pump body, pump cover, seal, steel cover, the relief valve and so on, simple structure and durable. YCB gear oil pump is suitable for conveying containing no solid particles and fibers, non-corrosive, temperature is not higher than 200 ℃, the viscosity of 5 x 10-6-1.5 x 10-3 m2 / s (5 to 1500 CST) nature of lubricating oil or other liquids, such as lubricating oil, and used in hydraulic transmission systems.
YCB gear oil pump type
such as：YCB10-0.6
YCB-circular gear pump
10-Flow(m3/h)
0.6-discharge pressure(MPa)
YCB gear oil pump performance parameters of the table:
| Model | CapacityQ | Speedn r/min |
Pressurep Mpa |
(NPSH)r m |
Motor | ||
| m3/h | Hz | KW | Model | ||||
| YCB0.6-0.6 | 0.6 | 910 | 0.6 | 5.5 | 50 | 0.75 | Y90S-6 |
| 1.0 | 1390 | 50 | 0.75 | Y80L2-4 | |||
| 0.7 | 1130 | 60 | 0.75 | Y90S-6 | |||
| 1.2 | 1710 | 60 | 0.75 | Y80L2-4 | |||
| YCB0.6-1.6 | 0.6 | 910 | 1.6 | 7.0 | 50 | 1.1 | Y90L-6 |
| 1.0 | 1400 | 50 | 1.5 | Y90L-4 | |||
| 0.7 | 1130 | 60 | 1.1 | Y90L-6 | |||
| 1.2 | 1710 | 60 | 1.1 | Y90S-4 | |||
| YCB1.6-0.6 | 1.6 | 910 | 0.6 | 5.5 | 50 | 0.75 | Y90S-6 |
| 2.5 | 1400 | 50 | 1.1 | Y90S-4 | |||
| 1.9 | 1130 | 60 | 1.1 | Y90L-6 | |||
| 3.0 | 1710 | 60 | 1.5 | Y90L-4 | |||
| YCB1.6-1.6 | 1.6 | 940 | 1.6 | 7.0 | 50 | 2.2 | Y112M-6 |
| 2.5 | 1440 | 50 | 4 | Y112M-4 | |||
| 1.9 | 1150 | 60 | 2.2 | Y112M-6 | |||
| 3.0 | 1750 | 60 | 4 | Y112M-4 | |||
| YCB3.3-0.6 | 3.3 | 940 | 0.6 | 5.0 | 50 | 1.5 | Y100L-6 |
| 5.0 | 1420 | 50 | 2.2 | Y100L1-4 | |||
| 4.0 | 1150 | 60 | 1.5 | Y100L-6 | |||
| 6.0 | 1730 | 60 | 2.2 | Y100L1-4 | |||
| YCB3.3-1.6 | 3.3 | 960 | 1.6 | 7.0 | 50 | 5.5 | Y132M2-6 |
| 5.0 | 1440 | 50 | 7.5 | Y132M-4 | |||
| 4.0 | 1170 | 60 | 4 | Y132M1-6 | |||
| 6.0 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB4-0.6 | 4.0 | 940 | 0.6 | 5.0 | 50 | 1.5 | Y100L-6 |
| 6.0 | 1420 | 50 | 2.2 | Y100L1-4 | |||
| 4.8 | 1150 | 60 | 2.2 | Y112M-6 | |||
| 7.2 | 1730 | 60 | 3 | Y100L2-4 | |||
| YCB4-1.6 | 4.0 | 960 | 1.6 | 7.0 | 50 | 5.5 | Y132M2-6 |
| 6.0 | 1440 | 50 | 7.5 | Y132M-4 | |||
| 4.8 | 1170 | 60 | 5.5 | Y132M-6 | |||
| 7.2 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB8-0.6 | 8.0 | 960 | 0.6 | 5.0 | 50 | 3 | Y132S-6 |
| 12.0 | 1440 | 50 | 5.5 | Y132S-4 | |||
| 9.6 | 1170 | 60 | 4 | Y132M1-6 | |||
| 14.4 | 1750 | 60 | 5.5 | Y132S-4 | |||
| YCB8-1.6 | 8.0 | 970 | 1.6 | 7.0 | 50 | 11 | Y160L-6 |
| 12.0 | 1460 | 50 | 15 | Y160L-4 | |||
| 9.6 | 1170 | 60 | 11 | Y160L-6 | |||
| 14.4 | 1760 | 60 | 15 | Y160L-4 | |||
| YCB10-0.6 | 10.0 | 960 | 0.6 | 5.0 | 50 | 4 | Y132M1-6 |
| 15.0 | 1440 | 50 | 5.5 | Y132S-4 | |||
| 12.0 | 1170 | 60 | 5.5 | Y132M2-6 | |||
| 18.0 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB10-1.6 | 10.0 | 970 | 1.6 | 7.0 | 50 | 11 | Y160L-6 |
| 15.0 | 1470 | 50 | 15 | Y160L-4 | |||
| 12.0 | 1170 | 60 | 11 | Y160L-6 | |||
| 18.0 | 1770 | 60 | 18.5 | Y160L-4 | |||
| YCB20-0.6 | 20.0 | 970 | 0.6 | 5.0 | 50 | 7.5 | Y160M-6 |
| 24.0 | 1170 | 60 | 7.5 | Y160M-6 | |||
| YCB25-0.6 | 25.0 | 970 | 0.6 | 5.5 | 50 | 11 | Y160L-6 |
| 30.0 | 1170 | 60 | 11 | Y160L-6 | |||
| YCB30-0.6 | 30.0 | 970 | 0.6 | 5.5 | 50 | 11 | Y160L-6 |
| 36.0 | 1170 | 60 | 11 | Y160L-6 | |||
| YCB40-0.6 | 40.0 | 970 | 0.6 | 5.5 | 50 | 15 | Y180L-6 |
| 48.0 | 1180 | 60 | 15 | Y180L-6 | |||
| YCB50-0.6 | 50.0 | 970 | 0.6 | 5.5 | 50 | 22 | Y200L2-6 |
| 60.0 | 1180 | 60 | 22 | Y200L2-6 | |||
Thank you for your choose haina YCB gear oil pump product
