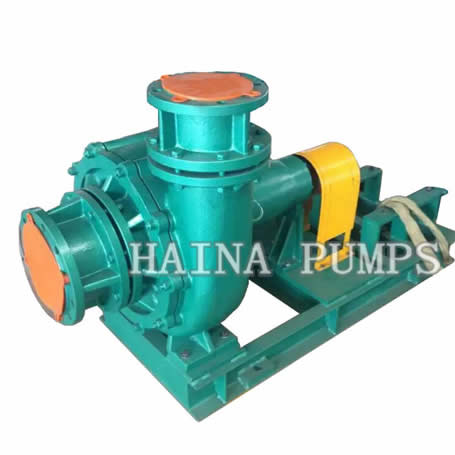

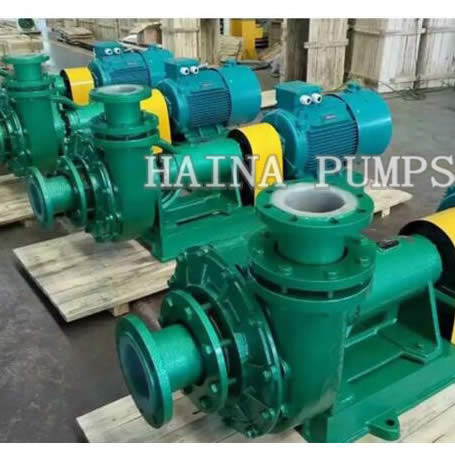

UHB-ZK chemical slurry pumpUHB-ZK-UHB-ZK PUMP CHINAUHB-ZK Pump

UHB-ZK Chemical Slurry Pump

Categories: .

UHB-ZK chemical slurry pump Product summarize：
UHB-ZK series pump as mortar, single cantilever centrifugal pumps, its flow components adopt steel structure of ultra-high molecular weight polyethylene(UHMWPE), strong corrosion resistance, excellent wear resistance. But transportation concentration below 50% of sulfuric acid, 80% of nitric acid, hydrochloric acid under such product of acid, alkali, salt slurry, rare metal smelting industries of various corrosive mortar and food, wine industry in various mixed media
Operating temperature: -20℃~80℃

Model:UHB-ZK pump
Structure & Feature:
(1). Corrosion and abrasion resistant, multi-purpose, suitable for acid and alkaline liquor or pulp.
(2). UHMWPE case with a lining thickness of 8～20mm. By adopting the patented hexmetal lining technology, it features good anti-thermal deformation, anti-cracking, drop-proof, and high working temperature etc.
(3). There are open and closed type vanes for you to select according to medium conditions.
(4). Sealing: K-type dynamic seal.
Suitable Medium:  sulphuric acid with a density below 80%, nitric acid with a density below 50%,hydrochloric acid of any density, liquid caustic soda, both liquor and pulp.The UHB-ZK pump manufacturer is china haina pumps,Main Technical Parameters:  working temperature: -20～80 (with the use of modified materials,it could reach 105 for special requirement); inlet diameter: 32mm～350mm; flow rate: 5～2000m3/h;hoisting height: with 50 meters.

Extensive Applications:
1. Sulphuric acid phosphate fertilizer industries: pumping of diluted acid, mother liquid, sewage,
sea water, fluosilicic acid with silica gel content, phosphate pulp, and other medium.
2. Non-ferrous metallurgical industry: especially suitable for pumping of acid liquids from hydrometallurgy of lead, zinc, gold, silver, copper, manganese, cobalt, rare earth etc., and corrosive ore pulp,material pulp (for filtering press), electrolyte, sewage, etc.
3. Chemical and other enterprises: sulphuric acid, hydrochloric acid, alkaline, oil liquor or pulp positions; titan white, iron-red powder production, dye and pigment production, nonmetallic mineral processing, etc.
4. Alkali chloride industry:  hydrochloric acid, liquid caustic soda, electrolyte, etc.
5. Water treatment industry:  purifying, high purifying, sewage and waste water of leather,
electroplating, electronics, paper making, textile, food, pharmaceutical industries and sanitary sewage.
6. Steel enterprise: sulphuric acid, hydrochloric acid position of acid washing system, impurity waste water.
7. Wet desulphurizing circulation pump:  suitable for alkali, acid, corrosive positions all.
8. Pumping of corrosive liquid, coal pulp of coal industry and coal chemistry. And for coal washing and selection.

UHB-ZK chemical slurry pump model and technical data

NO Model Flow
(m3/h)		 Head
(m)		 Speed
(r/min)		 Power(kw) Inlet / Outlet
(mm×mm)		 N.W
(kg)
shaft power Motor
power
1 32UHB-ZK-3-13 3 13 2900 0.3 0.75 32×25 80
2 32UHB-ZK-5-12 5 12 2900 0.42 0.75
3 32UHB-ZK-7-10 7 10 2900 0.5 0.75
4 32UHB-ZK-5-5 5 5 1450 0.25 0.75
5 32UHB-ZK-3-18 3 18 2900 0.4 1.1
6 32UHB-ZK-5-15 5 15 2900 0.55 1.1
7 32UHB-ZK-8-12 8 12 2900 0.7 1.1
8 32UHB-ZK-5-20 5 20 2900 0.72 1.1
9 32UHB-ZK-8-18 8 18 2900 1.2 1.5
10 32UHB-ZK-12-15 12 15 2900 1.3 2.2
11 32UHB-ZK-5-25 5 25 2900 1.5 2.2
12 32UHB-ZK-10-20 10 20 2900 1.6 2.2
13 32UHB-ZK-15-15 15 15 2900 1.7 2.2
14 32UHB-ZK-7.5-6 7.5 6 1450 0.4 0.75
15 40UHB-ZK-10-18 10 18 2900 1.6 2.2 40×32 130
16 40UHB-ZK-15-15 15 15 2900 1.7 2.2
17 40UHB-ZK-10-30 10 30 2900 2.2 3
18 40UHB-ZK-15-25 15 25 2900 2.7 3
19 40UHB-ZK-18-20 18 20 2900 2.6 3
20 50UHB-ZK-10-7.5 10 7.5 1450 0.8 1.1 50×40 170
21 50UHB-ZK-10-35 10 35 2900 3.2 4
22 50UHB-ZK-20-20 20 20 2900 3 4
23 50UHB-ZK-25-18 25 18 2900 3.2 4
24 50UHB-ZK-30-15 30 15 2900 3.1 4
25 50UHB-ZK-15-32 15 32 2900 3.5 5.5
26 50UHB-ZK-20-30 20 30 2900 4.3 5.5
27 50UHB-ZK-25-28 25 28 2900 5 5.5
28 50UHB-ZK-12-40 12 40 2900 3.8 5.5
29 50UHB-ZK-15-43 15 43 2900 5.6 7.5
30 50UHB-ZK-15-30 15 30 1450 2.95 4 50×40 380
31 50UHB-ZK-20-30 20 30 1450 3.95 5.5
32 50UHB-ZK-25-30 25 30 1450 4.75 5.5
33 50UHB-ZK-20-25 20 25 1450 3.16 4
34 50UHB-ZK-25-25 25 25 1450 3.95 5.5
35 50UHB-ZK-15-25 15 25 1450 2.45 3
36 65UHB-ZK-15-8 15 8 1450 0.9 1.1 65×50 220
37 65UHB-ZK-30-25 30 25 2900 5.3 5.5
38 65UHB-ZK-35-20 35 20 2900 5.1 5.5
39 65UHB-ZK-40-15 40 15 2900 4.5 5.5
40 65UHB-ZK-30-32 30 32 2900 6.5 7.5
41 65UHB-ZK-35-25 35 25 2900 6.2 7.5
42 65UHB-ZK-40-20 40 20 2900 5.9 7.5
43 65UHB-ZK-5-11 5 11 1450 0.6 1.1 65×50 270
44 65UHB-ZK-10-12.5 10 12.5 1450 1.2 2.2
45 65UHB-ZK-15-12.5 15 12.5 1450 1.6 2.2
46 65UHB-ZK-10-45 10 45 2900 4.8 7.5
47 65UHB-ZK-10-40 10 40 2900 4.2 5.5
48 65UHB-ZK-20-50 20 50 2900 8.7 11
49 65UHB-ZK-30-50 30 50 2900 12 15
50 65UHB-ZK-30-40 30 40 2900 9.6 11
51 65UHB-ZK-10-55 10 55 2900 8.6 11
52 65UHB-ZK-20-20 20 20 1450 3.2 4 65×50 330
53 65UHB-ZK-35-15 35 15 1450 5.1 5.5
54 65UHB-ZK-30-20 30 20 1450 5 5.5
55 65UHB-ZK-35-20 35 20 1450 5.8 7.5
56 65UHB-ZK-AH-10-70 10 70 2900 8.4 11 65×50 350
57 65UHB-ZK-AH-15-70 15 70 2900 11.2 15
58 65UHB-ZK-AH-25-70 25 70 2900 15.9 18.5
59 65UHB-ZK-AH-30-60 30 60 2900 18.9 22
60 65UHB-ZK-10-30 10 30 1450 1.92 3 65×50 380
61 65UHB-ZK-20-30 20 30 1450 3.98 5.5
62 65UHB-ZK-30-30 30 30 1450 5.72 7.5
63 65UHB-ZK-20-25 20 25 1450 3.16 4
64 65UHB-ZK-30-25 30 25 1450 4.7 5.5
65 65UHB-ZK-MH-10-40 10 40 1450 2.92 4 65×50 400
66 65UHB-ZK-MH-20-40 20 40 1450 5.66 7.5
67 65UHB-ZK-MH-30-40 30 40 1450 7.89 11
68 65UHB-ZK-MH-20-35 20 35 1450 4.45 5.5
69 65UHB-ZK-MH-30-35 30 35 1450 6.65 7.5
70 80UHB-ZK-17.5-11 17.5 11 1450 1.5 2.2 80×65 270
71 80UHB-ZK-22.5-12.5 22.5 12.5 1450 2.3 3
72 80UHB-ZK-40-20 40 20 1450 5.8 7.5
73 80UHB-ZK-45-18 45 18 1450 6.1 7.5
74 80UHB-ZK-50-15 50 15 2900 5.6 7.5
75 80UHB-ZK-35-45 35 45 2900 10.8 11
76 80UHB-ZK-40-35 40 35 2900 10.2 11
77 80UHB-ZK-45-35 45 35 2900 10.1 11
78 80UHB-ZK-50-30 50 30 2900 10.2 11
79 80UHB-ZK-60-30 60 30 2900 12.6 15
80 80UHB-ZK-45-50 45 50 2900 14.8 15
81 80UHB-ZK-55-40 55 40 2900 15.8 18.5
82 80UHB-ZK-20-70 20 70 2900 8.93 11 80×65 300
83 80UHB-ZK-30-70 30 70 2900 14.3 18.5
84 80UHB-ZK-45-60 45 60 2900 18.3 22
85 80UHB-ZK-40-40 40 40 1450 14.8 18.5 80×65 750
86 80UHB-ZK-30-50 30 50 1450 15.3 18.5
87 80UHB-ZK-40-50 40 50 1450 17.9 22
88 80UHB-ZK-30-60 30 60 1450 17.6 22
89 80UHB-ZK-50-56 50 56 1450 23.2 30
90 80UHB-ZK-40-60 40 60 1450 24.3 30
91 80UHB-ZK-60-55 60 55 1450 25.2 30
92 80UHB-ZK-AH-20-60 20 60 2900 10.3 15 80×65 370
93 80UHB-ZK-AH-20-75 20 75 2900 13.4 15
94 80UHB-ZK- AH-25-75 25 75 2900 15.3 18.5
95 80UHB-ZK- AH-30-70 30 70 2900 19.6 22
96 80UHB-ZK- AH-35-65 35 65 2900 22.5 30
97 80UHB-ZK- AH-40-60 40 60 2900 22.6 30
98 100UHB-ZK-50-11 50 11 1450 4.2 5.5 100×80 370
99 100UHB-ZK-80-15 80 15 2900 10.2 11
100 100UHB-ZK-60-30 60 30 2900 13.8 15
101 100UHB-ZK-100-20 100 20 2900 11 15
102 100UHB-ZK-50-50 50 50 2900 17.5 18.5
103 100UHB-ZK-60-40 60 40 2900 16.8 18.5
104 100UHB-ZK-80-35 80 35 2900 17.8 22
105 100UHB-ZK-80-30 80 30 2900 17.5 22
106 100UHB-ZK-100-25 100 25 2900 17.9 22
107 100UHB-ZK-100-30 100 30 2900 17.2 22
108 100UHB-ZK-140-15 140 15 2900 16.8 22
109 100UHB-ZK-100-40 100 40 2900 21.8 30
110 100UHB-ZK-120-15 120 15 2900 17.1 18.5
111 100UHB-ZK-140-10 140 10 2900 16.4 18.5
112 100UHB-ZK-50-58 50 58 2900 21 22
113 100UHB-ZK-60-50 60 50 2900 21.5 30
114 100UHB-ZK-100-27 100 27 2900 18.4 22
115 100UHB-ZK-70-45 70 45 2900 23.5 30
116 100UHB-ZK-80-50 80 50 2900 27 30
117 100UHB-ZK-100-45 100 45 2900 28 30
118 100UHB-ZK-120-40 120 40 2900 28.5 30
119 100UHB-ZK-145-28 145 28 2900 29.5 37
120 100UHB-ZK-40-70 40 70 2900 19.5 22 100×80 400
121 100UHB-ZK-50-70 50 70 2900 23.9 30
122 100UHB-ZK-60-70 60 70 2900 28.6 37
123 100UHB-ZK-80-35 80 35 1450 19.3 22 100×80 950
124 100UHB-ZK-80-40 80 40 1450 22.3 30
125 100UHB-ZK-60-70 60 70 1450 35.9 37
126 100UHB-ZK-60-65 60 65 1450 33.6 37
127 100UHB-ZK-50-70 50 70 1450 31.4 37
128 100UHB-ZK-80-60 80 60 1450 35.9 37
129 100UHB-ZK-80-50 80 50 1450 40.3 45
130 100UHB-ZK-100-57 100 57 1450 37.9 45
131 100UHB-ZK-80-65 80 65 1450 40.3 45
132 100UHB-ZK-120-50 120 50 1450 39.9 45
133 100UHB-ZK-100-65 100 65 1450 48.9 55
134 100UHB-ZK-120-60 120 60 1450 51.5 55
135 100UHB-ZK-AH-40-75 40 75 2900 28 30 100×80 480
136 100UHB-ZK-AH-50-80 50 80 2900 32.5 37
137 100UHB-ZK-AH-50-70 50 70 2900 30 37
138 100UHB-ZK-AH-60-80 60 80 2900 33.6 37
139 100UHB-ZK-AH-80-60 80 60 2900 35.4 37
140 125UHB-ZK-120-20 120 20 2900 17.2 18.5 125×100 480
141 125UHB-ZK-140-18 140 18 2900 21 22
142 125UHB-ZK-150-15 150 15 2900 21.5 22
143 125UHB-ZK-100-40 100 40 2900 28.8 30
144 125UHB-ZK-120-35 120 35 2900 29.4 30
145 125UHB-ZK-140-25 140 25 2900 25 30
146 125UHB-ZK-120-32 120 32 2900 26.8 30
147 125UHB-ZK-140-28 140 28 2900 27.6 30
148 125UHB-ZK-160-24 160 24 2900 28.1 30
149 125UHB-ZK-80-15 80 15 1450 10.2 11
150 125UHB-ZK-60-70 60 70 2900 28.6 37 125×100 560
151 125UHB-ZK-70-70 70 70 2900 33.47 37
152 125UHB-ZK-100-50 100 50 2900 34.2 37
153 125UHB-ZK-120-50 120 50 2900 40.2 45
154 125UHB-ZK-80-15 80 15 980 10.2 11 125×100 950
155 125UHB-ZK-100-40 100 40 1450 28.8 30
156 125UHB-ZK-120-35 120 35 1450 29.4 30
157 125UHB-ZK-140-25 140 25 1450 25 30
158 125UHB-ZK-120-32 120 32 1450 26.8 30
159 125UHB-ZK-140-28 140 28 1450 27.6 30
160 125UHB-ZK-100-50 100 50 1450 33.2 37
161 125UHB-ZK-120-40 120 40 1450 32.1 37
162 125UHB-ZK-100-60 100 60 1450 40.5 45
163 125UHB-ZK-120-50 120 50 1450 38.5 45
164 125UHB-ZK-100-65 100 65 1450 47.6 55
165 125UHB-ZK-120-60 120 60 1450 49.2 55
166 125UHB-ZK-140-56 140 56 1450 46.9 55
167 125UHB-ZK-150-56 150 56 1450 50.3 55
168 125UHB-ZK-180-40 180 40 1450 48.5 55
169 150UHB-ZK-180-14 180 14 1450 28.2 30 150×125 950
170 150UHB-ZK-160-16 160 16 1450 28 30
171 150UHB-ZK-150-20 150 20 1450 24.5 30
172 150UHB-ZK-120-25 120 25 1450 24.5 30
173 150UHB-ZK-138-8 138 8 980 10.5 11
174 150UHB-ZK-190-18 190 18 1450 19.8 22
175 150UHB-ZK-210-26 210 26 1450 36.4 37
176 150UHB-ZK-240-24 240 24 1450 35.2 37
177 150UHB-ZK-270-20 270 20 1450 36 37
178 150UHB-ZK-148-11 148 11 980 13.6 15 150×125 1000
179 150UHB-ZK-101-18 101 18 980 12.8 15
180 150UHB-ZK-80-11 80 11 980 8.9 11
181 150UHB-ZK-120-40 120 40 1450 33.6 37
182 150UHB-ZK-150-40 150 40 1450 42 45
183 150UHB-ZK-200-32 200 32 1450 43.4 45
184 150UHB-ZK-250-30 250 30 1450 41.5 45
185 150UHB-ZK-300-25 300 25 1450 42.3 45
186 150UHB-ZK-AH-120-70 120 70 1450 45.8 55 150×125 1200
187 150UHB-ZK-AH-150-70 150 70 1450 58.9 75
188 150UHB-ZK-AH-180-70 180 70 1450 68.6 75
189 200UHB-ZK-215-10 215 10 980 15.6 18.5 200×150 1200
190 200UHB-ZK-210-14 210 14 980 18.4 18.5
191 200UHB-ZK-168-20 168 20 980 27 30
192 200UHB-ZK-320-24 320 24 1450 37.3 45
193 200UHB-ZK-350-20 350 20 1450 37.1 45
194 200UHB-ZK-400-18 400 18 1450 38.3 45
195 200UHB-ZK-500-12 500 12 1450 38.6 45
196 200UHB-ZK-320-32 320 32 1450 51.8 55
197 200UHB-ZK-350-28 350 28 1450 45.2 55
198 200UHB-ZK-400-25 400 25 1450 70 75
199 200UHB-ZK-250-45 250 45 1450 74 75
200 200UHB-ZK-300-38 300 38 1450 69.5 75
201 200UHB-ZK-350-34 350 34 1450 67.3 75
202 200UHB-ZK-AH-200-70 200 70 1450 76.3 90 200×150 2200
203 200UHB-ZK-AH-280-70 280 70 1450 106.7 110
204 200UHB-ZK-AH-300-70 300 70 1450 114.3 132
205 200UHB-ZK-AH-350-70 350 70 1450 133.4 160
206 250UHB-ZK-400-30-L 400 30 1450 70.8 75 250×200 1300
207 250UHB-ZK-500-22-L 500 22 1450 68.4 75
208 250UHB-ZK-270-14 270 14 980 21.5 30 250×200 2200
209 250UHB-ZK-270-20 270 20 980 31.8 37
210 250UHB-ZK-600-20 600 20 1450 68.4 75
211 250UHB-ZK-400-32 400 32 1450 76.8 90
212 250UHB-ZK-500-26 500 26 1450 78.3 90
213 250UHB-ZK-400-45 400 45 1450 108.9 110
214 250UHB-ZK-500-37 500 37 1450 100.7 110
215 250UHB-ZK-600-30 600 30 1450 98 110
216 250UHB-ZK-500-45 500 45 1450 123.8 132
217 250UHB-ZK-650-45 650 45 1450 137.8 160
218 300UHB-ZK-700-40-L 700 40 1450 139.2 160 300×250 2300
219 300UHB-ZK-850-35-L 850 35 1450 133.8 160
220 300UHB-ZK-950-30-L 950 30 1450 140.3 160
221 300UHB-ZK-1000-28-L 1000 28 1450 148.7 160
222 300UHB-ZK-675-15 675 15 980 47.23 55 300×250 3400
223 300UHB-ZK-675-22.8 675 22.8 980 72.3 75
224 300UHB-ZK-800-32 800 32 980 118.5 132
225 300UHB-ZK-900-21 900 21 980 98.2 110
226 300UHB-ZK-1000-30 1000 30 980 137.3 160
227 300UHB-ZK-1050-22 1050 22 980 107.8 110
228 300UHB-ZK-1100-28 1100 28 980 139.5 160
229 300UHB-ZK-960-27.4 960 27.4 980 122.7 132
230 300UHB-ZK-860-33 860 33 1450 127.3 132
231 300UHB-ZK-1000-32 1000 32 1450 149.3 160
232 300UHB-ZK-1180-31 1180 31 1450 142.3 160
233 300UHB-ZK-850-40 850 40 1450 157.3 160
234 300UHB-ZK-1050-28 1050 28 980 139.6 160
235 300UHB-ZK-1200-30 1200 30 1450 168.9 180
236 300UHB-ZK-850-51 850 51 1450 190.3 200
237 300UHB-ZK-850-55 850 55 1450 218.2 250
238 300UHB-ZK-1000-50 1000 50 1450 233.4 250
239 300UHB-ZK-1100-48.8 1100 48.8 1450 242.3 250
240 350UHB-ZK-1400-28-L 1400 28 1450 195.3 200 350×300 3500
241 350UHB-ZK-1500-25-L 1500 25 1450 194.4 200
242 350UHB-ZK-1500-30-L 1500 30 1450 232.5 250
243 350UHB-ZK-1600-28-L 1600 28 1450 216.3 250
244 350UHB-ZK-1600-25-L 1600 25 1450 186.7 200
245 350UHB-ZK-1800-25-L 1800 25 1450 224.8 250
246 350UHB-ZK-1470-11 1470 11 720 76.8 90 350×300 3850
247 350UHB-ZK-1600-25 1600 25 980 186 200
248 350UHB-ZK-2000-20 2000 20 980 186 200
249 350UHB-ZK-2600-16 2600 16 980 194 220
250 350UHB-ZK-1800-20 1800 20 980 168 180
251 350UHB-ZK-2000-25 2000 25 980 223 250
252 350UHB-ZK-1500-35 1500 35 980 228 250
253 350UHB-ZK-2500-20 2500 20 980 233 250
254 350UHB-ZK-2500-25 2500 25 980 282 300
255 350UHB-ZK-2000-32 2000 32 980 293 300
256 400UHB-ZK-1000-35 1000 35 980 190 200 400×350 4000
257 400UHB-ZK-1200-32 1200 32 980 220 250
258 400UHB-ZK-1500-30 1500 30 980 223 250
259 400UHB-ZK-1800-26 1800 26 980 265 280
260 400UHB-ZK-2000-23 2000 23 980 268 280
261 500UHB-ZK-1600-60 1600 60 980 440 450 500×450 5000
262 500UHB-ZK-1800-58 1800 58 980 442 450
263 500UHB-ZK-2000-55 2000 55 980 443 450
264 500UHB-ZK-2300-53 2300 53 980 482 500
265 500UHB-ZK-2500-50 2500 50 980 486 500
266 500UHB-ZK-2600-44 2600 44 980 488 500
267 500UHB-ZK-1465-28 1465 28 735 195 220
268 500UHB-ZK-1825-25 1825 25 735 225 250
269 500UHB-ZK-3000-25 3000 25 735 329 350 500×450 5200
270 500UHB-ZK-3300-22 3300 22 735 320 350
271 500UHB-ZK-3500-21 3500 21 735 323 350
272 500UHB-ZK-3600-20 3600 20 735 316 350
273 500UHB-ZK-3700-18.5 3700 18.5 735 307 350
274 500UHB-ZK-3800-18 3800 18 735 301 350
275 500UHB-ZK-3900-17.5 3900 17.5 735 300 350
276 600UHB-ZK-2500-55 2500 55 735 691 750 600×500 6500
277 600UHB-ZK-3100-45 3100 45 735 701 750
278 600UHB-ZK-3700-40 3700 40 735 720 750
279 600UHB-ZK-2600-32 2600 32 735 418 450
280 600UHB-ZK-3000-28 3000 28 735 422 450
281 600UHB-ZK-3800-23 3800 23 735 439 450
282 600UHB-ZK-4000-33 4000 33 735 663 750
283 600UHB-ZK-4500-30 4500 30 735 678 750
284 600UHB-ZK-5000-26 5000 26 735 653 750
285 600UHB-ZK-2500-27 2500 27 585 303 315
286 600UHB-ZK-2400-17 2400 17 585 190 200
287 600UHB-ZK-3600-20 3600 20 585 336 400

Your Name

Your Email

Inquiry Product

Your Message

Captcha

Related Product
