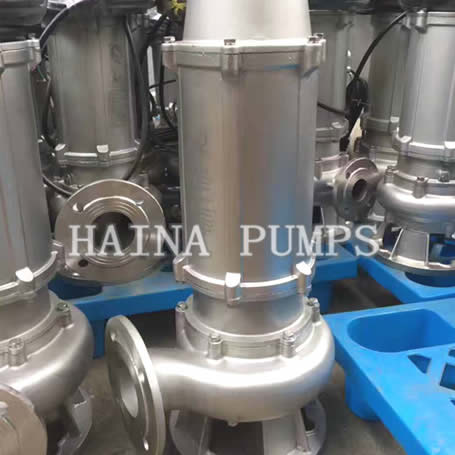

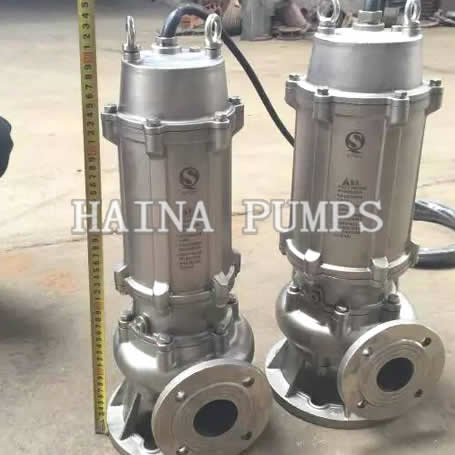

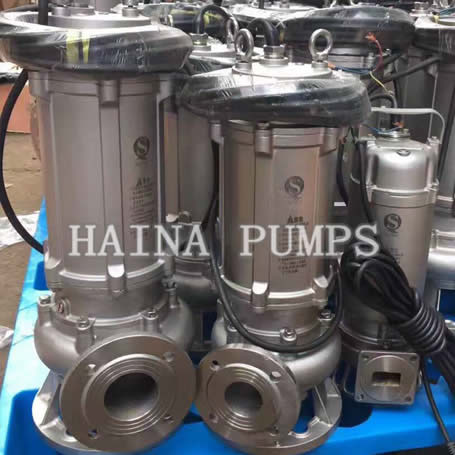

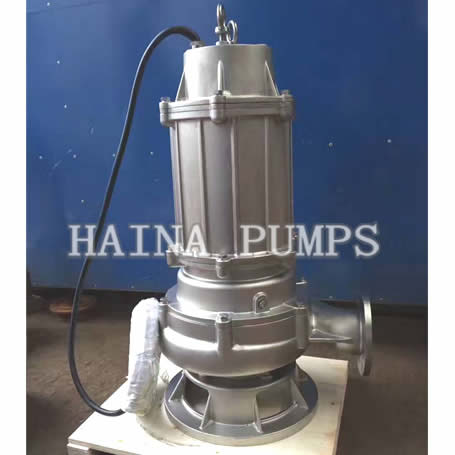

Submersible Pump

submersible pump is the factory on the basis of absorbing foreign advanced technology, using a new
type of environmentally friendly products excellent hydraulic model developed and become, in the carriage of solid
particles and the long fiber waste and reduce the deposition of sump and so on, has the unique function.
The pump hydraulic performance of advanced and mature, the performance index has reached or exceeded the level of
similar foreign products, advanced technology.

submersible pump scope of application

Suitable for chemical, petroleum, pharmaceutical, mining, paper, power plant and the city sewage treatment, municipal
engineering, public facilities such as sewage discharge conveyor belt particles.
The model significance:
100 – pump outlet diameter (mm)

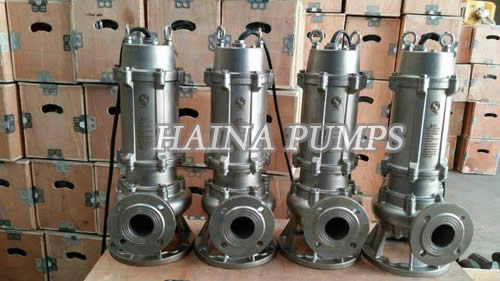

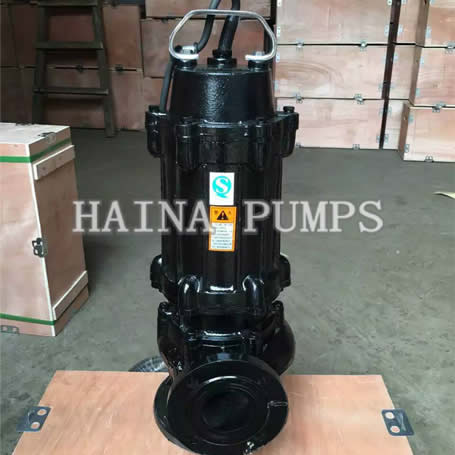

WQ submersible sewage pump
100 – the rated flow rate (m3/h)
15 – rated head (m)
7.5 – the motor rated power (Kw)
submersible pump Product features:
1. The pump outlet pressure, stir in the sewage sludge, to completely discharge the sediment sewage pool purpose.
2. Anti-jamming design of hydraulic components, channel, greatly improve the through capacity of sewage, can effectively
through 5 times of pump diameter and diameter of fiber material for solid particles 50% of pump diameter.
3. Reasonable design, reasonable matching motor, high efficiency, energy saving effect is remarkable.
4. Dual path series seal, mechanical seal 4, the material is corrosion-resistant tungsten carbide, durable, wear-resistant,
can pump the security more than 8000 hours of continuous operation.
5. The pump has the advantages of compact structure, small volume, easy to move, easy installation, no need of pump room,
dive into the water to work, reduce the project cost.
6. The oil chamber is provided with a water probe which is the absolute protection of the pump.
7. It can be equipped with automatic safety protection control cabinet, the pump Water Leakage, leakage, overload and
over temperature and so on absolute protection, improve the safety and reliability of the product.
8. The float switch can be in accordance with the required water level change, automatically control the pump to start
and stop, no personal care.
9 The motor can be used water jacket cooling system, ensure the pump in the water (dry) under the condition of safe
operation.
10. Automatic coupling installation system, bring great convenience to the installation, repair the pump, this may not
enter the sewage pit.
11 Installation modes include fixed automatic coupling installation and mobile free installation which can meet the needs

NO	Model	caliber	Flow	Head	Power	Speed	efficiency
NO	Model	mm	m3/h	m	KW	r/min	%
1	25 WQ 8-22-1.1	25	8	22	1.1	2900	38.5
2	32 WQ 12-15-1.1	32	12	15	1.1	2900	40
3	40 WQ 15-15-1.5	40	15	15	1.5	2900	45.1
4	40 WQ 15-30-2.2	40	15	30	2.2	2900	48
5	50 WQ 20-7-0.75	50	20	7	0.75	2900	54
6	50 WQ 10-10-0.75	50	10	10	0.75	2900	56
7	50 WQ 20-15-1.5	50	20	15	1.5	2900	55
8	50 WQ 15-25-2.2	50	15	25	2.2	2900	56
9	50 WQ 25-20-2.2	50	25	20	2.2	2900	56
10	50 WQ 18-30-3	50	18	30	3	2900	58
11	50 WQ 25-32-5.5	50	25	32	5.5	2900	53
12	50 WQ 20-40-7.5	50	20	40	7.5	2900	55
13	65 WQ 25-15-2.2	65	25	15	2.2	2900	52
14	65 WQ 37-13-3	65	37	13	3	2900	55
15	65 WQ 25-30-4	65	25	30	4	2900	58
16	65 WQ 30-40-7.5	65	30	40	7.5	2900	56
17	65 WQ 35-50-11	65	35	50	11	2900	60
18	65 WQ 35-60-15	65	35	60	15	2900	63
19	80 WQ 40-7-2.2	80	40	7	2.2	1450	52
20	80 WQ 43-13-3	80	43	13	3	2900	50
21	80 WQ 40-15-4	80	40	15	4	2900	57
22	80 WQ 65-25-7.5	80	65	25	7.5	2900	56
23	100 WQ 80-10-4	100	80	10	4	1450	62
24	100 WQ 110-10-5.5	100	110	10	5.5	1450	66
25	100 WQ 100-15-7.5	100	100	15	7.5	1450	67
26	100 WQ 80-20-7.5	100	80	20	7.5	1450	68
27	100 WQ 100-25-11	100	100	25	11	1450	65
28	100 WQ 100-30-15	100	100	30	15	1450	66
29	100 WQ100-35-18.5	100	100	35	18.5	1450	65
30	125 WQ 100-15-11	125	100	15	11	1450	62
31	125 WQ 130-20-15	125	130	20	15	1450	63
32	150 WQ 145-9-7.5	150	145	9	7.5	1450	63
33	150 WQ 180-15-15	150	180	15	15	1450	65
34	150 WQ 180-20-18.5	150	180	20	18.5	1450	75
35	150 WQ 180-25-22	150	180	25	22	1450	76
36	150 WQ 130-30-22	150	130	30	22	1450	75
37	150 WQ 180-30-30	150	180	30	30	1450	73
38	150 WQ 200-30-37	150	200	30	37	1450	70
39	150 WQ 160-45-37	150	160	37	37	1450	70
40	200 WQ 300-7-11	200	300	7	11	980	73
41	200 WQ 250-11-15	200	250	11	15	980	74
42	200 WQ 250-15-18.5	200	250	15	18.5	1450	72
43	200 WQ 400-10-22	200	400	10	22	1450	76
44	200 WQ 400-13-30	200	400	13	30	1450	73
45	200 WQ 300-15-22	200	300	15	22	1450	73
46	200 WQ 250-22-30	200	250	22	30	1450	71
47	200 WQ 350-25-37	200	350	25	37	1450	75
48	200 WQ 400-30-55	200	400	30	55	1450	70
49	250 WQ 600-9-30	250	600	9	30	980	74
50	250 WQ 600-12-37	250	600	12	37	1450	78
51	250 WQ 600-15-55	250	600	15	55	1450	75
52	250 WQ 600-20-55	250	600	20	55	1450	73
53	300 WQ 500-15-45	300	500	15	45	980	70
54	300 WQ 800-15-55	300	800	15	55	980	73
55	300 WQ 600-20-55	300	600	20	55	980	75
56	300 WQ 800-20-75	300	800	20	75	980	78
57	300 WQ 950-20-90	300	950	20	90	980	80
58	300 WQ 1000-25-110	300	1000	25	110	980	82
59	350 WQ 1100-10-55	350	1100	10	55	980	84.5
60	350 WQ 1500-15-90	350	1500	15	90	980	82.5
61	350 WQ 1200-18-90	350	1200	18	90	980	83.1
62	350 WQ 1100-28-132	350	1100	28	132	740	83.2
63	350 WQ 1000-36-160	350	1000	36	160	740	78.5
64	400 WQ 2000-15-132	400	2000	15	132	740	85.5
65	400 WQ 1700-22-160	400	1700	22	160	740	82.1
66	400 WQ 1500-26-160	400	1500	26	160	740	83.5
67	400 WQ 1700-30-200	400	1700	30	200	740	83.5
68	400 WQ 1800-32-250	400	1800	32	250	740	82.1
69	500 WQ 2500-10-110	500	2500	10	110	740	82
70	500 WQ 2600-15-160	500	2600	15	160	740	83
71	500 WQ 2400-22-220	500	2400	22	220	740	84
72	500 WQ 2600-24-250	500	2600	24	250	740	82
