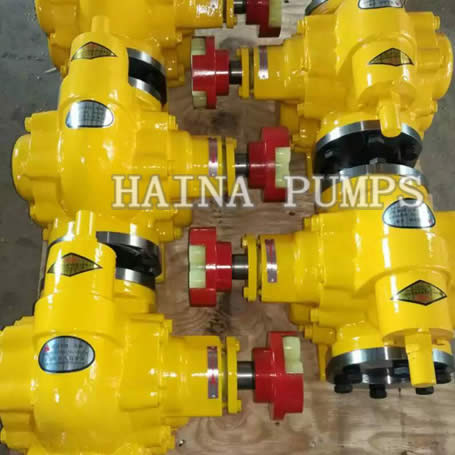

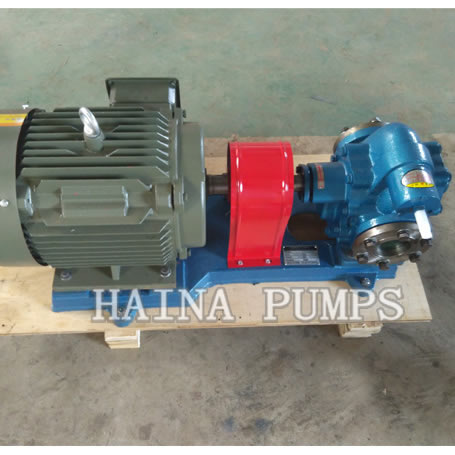

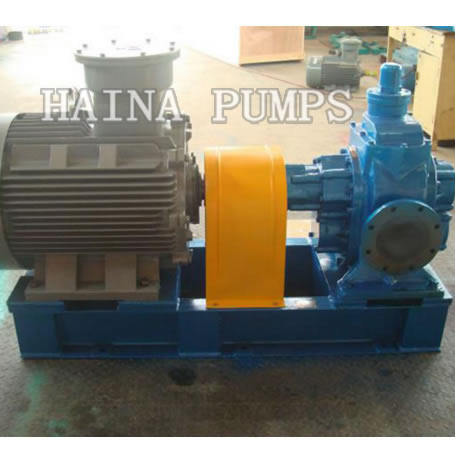

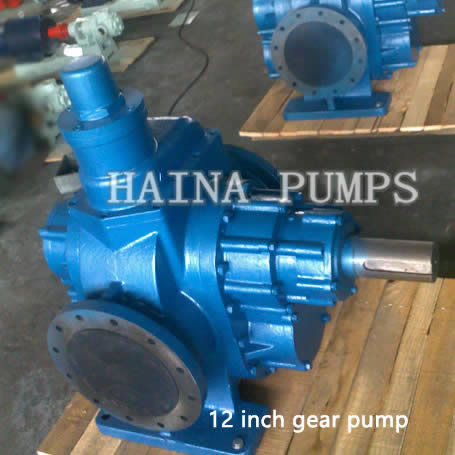

KCB palm oil pump Flow range 1-570 cubic meters per hour,Our factory manufacture KCB palm oil pump long service life, easy maintenance.Pump made of cast iron, stainless steel and etc.
| Model | Caliber (Inch) |
Flow (L/min ) |
Pressure (MPa ) |
Suction Lift (m ) |
kcb palm oil pump with Motor power (KW ) |
| KCB-18.3 | 3/4 | 18.3 | 1.45 | 5 | 1.5 |
| KCB-33.3 | 3/4 | 33.3 | 1.45 | 5 | 2.2 |
| KCB-55 | 1″ | 55 | 0.33 | 5 | 1.5 |
| KCB-83.3 | 1 1/2″ | 83.3 | 0.33 | 5 | 2.2 |
| KCB-135 | 2″ | 135 | 0.33 | 5 | 4 |
| KCB-200 | 2″ | 200 | 0.33 | 5 | 4 |
| KCB-300 | 3″ | 300 | 0.33 | 5 | 5.5 |
| KCB483.3 | 3″ | 483.3 | 0.33 | 5 | 7.5 |
| KCB483.3 | 3″ | 483.3 | 1.0 | 5 | 11 |
| KCB-633 | 4″ | 633 | 0.28 | 5 | 11 |
| KCB-960 | 4″ | 960 | 0.3 | 5 | 18.5 |
| KCB1200 | 6″ | 1200 | 0.6 | 3 | 37 |
| KCB1600 | 6″ | 1600 | 0.6 | 3 | 45 |
| KCB1800 | 8″ | 1800 | 0.6 | 2.5 | 55 |
| KCB2500 | 8″ | 2500 | 0.6 | 2.5 | 75 |
| KCB3800 | 10″ | 3800 | 0.6 | 2 | 110 |
| KCB5400 | 10″ | 5400 | 0.6 | 2 | 110 |
| KCB7600 | 14″ | 7600 | 0.6 | 2 | 200 |
| KCB9600 | 14″ | 9600 | 0.6 | 2 | 250 |
