Single screw pump has been widely used in developed countries, the German said “Mono pump“.Because of its excellent performance, in domestic application scope is expanding fast.It is the biggest characteristic of the medium of strong adaptability, smooth flow, high pressure fluctuation is small, self-priming capacity, this is irreplaceable by any other kind of pump.
Mono pump use wide range, mainly used in: environmental protection, shipbuilding industry, petroleum industry, medicine, cosmetic, brewing, building industry, mining industry, chemical industry, printing and paper industry.
1. G type displacement mono pump high viscosity high pressure slurry mono pump is compact, small, easy to maintain, well-adapted to medium, stable flow, also with small pressure fluctuation.
2. Pump has metal lined with rubber stator, which is made of various elastic material, such as NBR rubber, Silicon rubber.
3. G type screw pump china haina pump could pump high viscosity fluid and medium with hard suspended solid/fiber as well.
4. This pump is widely used in construction field, foodstuff and beverage industries by adopting silicon rubber stator.

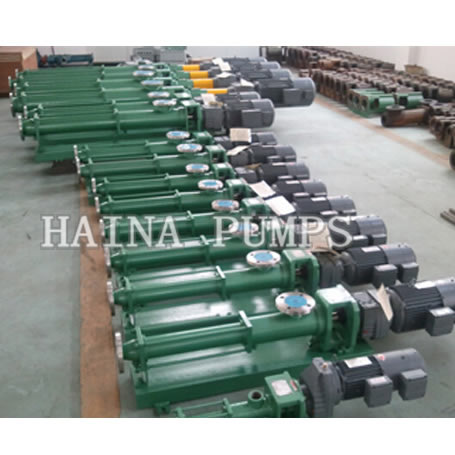

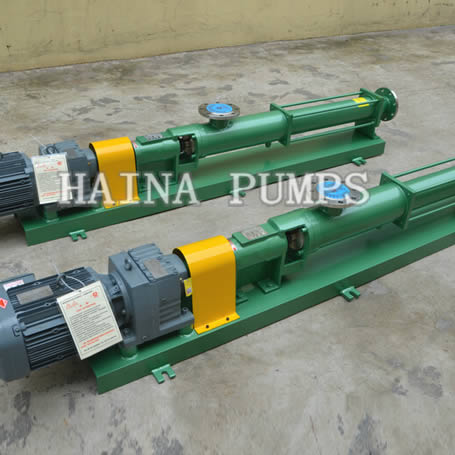

5. Mono pump may equipped with gear box motor, electric magnetic speed adjustable motor, CVT motor, frequency inverter motor,etc.
| Model | Capacity | Pressure | Speed | Motor power | Head | (NPSH)r | Inlet | Outlet | Max grain diameter | Max fiber length |
| (m3/h) | (MPa) | (r/min) | (KW) | (m) | (m) | (mm) | (mm) | (mm) | (mm) | |
| G20-1 | 0.8 | 0.6 | 960 | 0.75 | 60 | 4 | 25 | 25 | 1.5 | 25 |
| G20-2 | 1.2 | 1.5 | 120 | |||||||
| G25-1 | 2 | 0.6 | 960 | 1.5 | 60 | 32 | 25 | 2 | 30 | |
| G25-2 | 1.2 | 2.2 | 120 | |||||||
| G30-1 | 5 | 0.6 | 960 | 2.2 | 60 | 50 | 40 | 2.5 | 35 | |
| G30-2 | 1.2 | 3 | 120 | |||||||
| G35-1 | 8 | 0.6 | 960 | 3 | 60 | 65 | 50 | 3 | 40 | |
| G35-2 | 1.2 | 4 | 120 | |||||||
| G40-1 | 12 | 0.6 | 960 | 4 | 60 | 80 | 65 | 3.8 | 45 | |
| G40-2 | 1.2 | 5.5 | 120 | |||||||
| G50-1 | 20 | 0.6 | 960 | 5.5 | 60 | 4.5 | 100 | 80 | 5 | 50 |
| G50-2 | 1.2 | 7.5 | 120 | |||||||
| G60-1 | 30 | 0.6 | 960 | 11 | 60 | 5 | 125 | 100 | 6 | 60 |
| G60-2 | 1.2 | 15 | 120 | |||||||
| G70-1 | 40 | 0.6 | 720 | 11 | 60 | 150 | 125 | 8 | 70 | |
| G70-2 | 1.2 | 18.5 | 120 | |||||||
| G85-1 | 65 | 0.6 | 630 | 15 | 60 | 150 | 150 | 10 | 80 | |
| G85-2 | 1.2 | 30 | 120 | |||||||
| G105-1 | 100 | 0.6 | 500 | 30 | 60 | 200 | 200 | 15 | 110 | |
| G105-2 | 1.2 | 55 | 120 | |||||||
| G135-1 | 150 | 0.6 | 400 | 45 | 60 | 250 | 250 | 20 | 150 | |
| G135-2 | 1.2 | 90 | 120 |
Mono pump sale in china haina pump,Welcome to buy the mono pump,We will provide you with excellent service!
