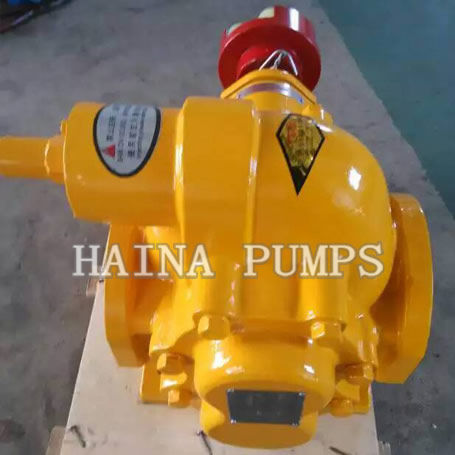

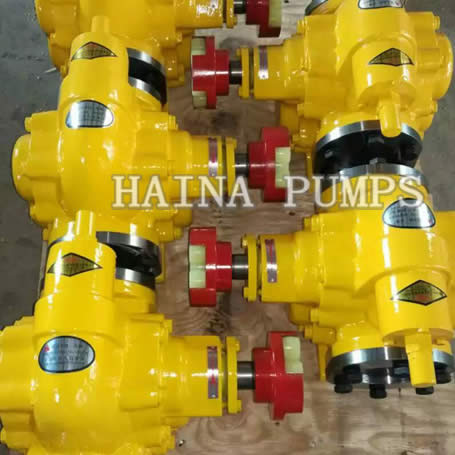

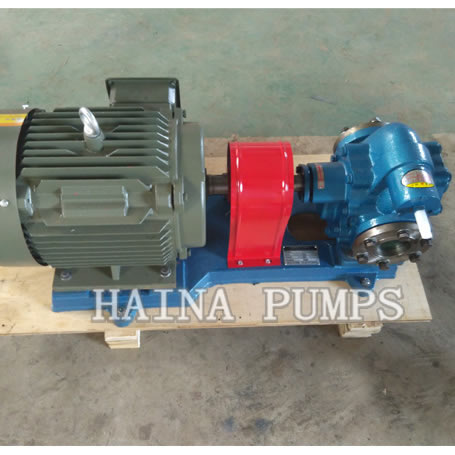

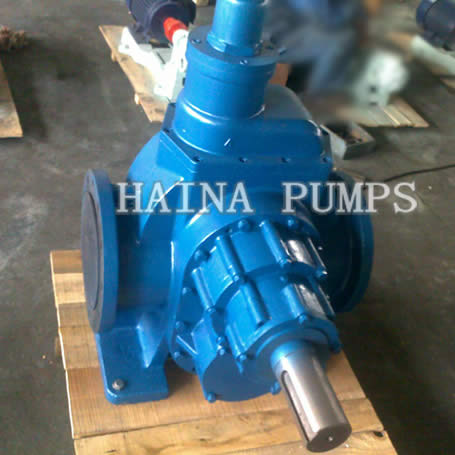

KCB gear pump is mainly used in food, chemical, oil, etc. The biggest characteristic of the pump is low price, long service life.
This type of gear pump is ideal for transferring heavy oil, diesel, machine oil and vegetable oil that is non-corrosive, contains no impurities or fibers, as well as has a viscosity less than 150mm2/s and temperature lower than 120℃.

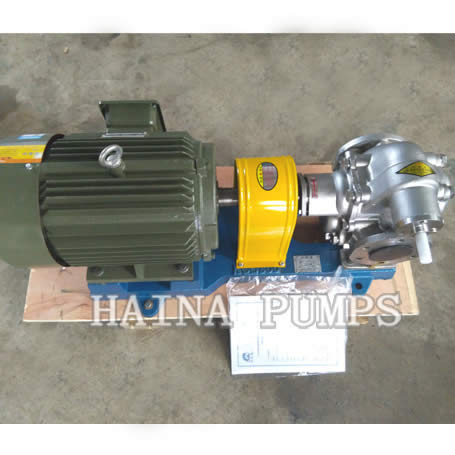

In this industrial fuel pump, all components have been well designed and handled, and KCB gear pump can take advantage of transferred media as lubricating agent. To get higher strength and rigidity, the gear has undergone heat treatment and coordinated closely with the shaft. The well designed oil drain slot and oil return slot provide minimum torque strength for gear, which in turns brings less load and abrasion for bearing and high working efficiency.And kcb gear pump manufacturer is haina pump,If the media are highly corrosive, acid- and alkali-resistant materials are available upon request. When it comes to combustive and explosive media, copper-made and nonmetal-made parts for the fuel transfer pumps are available.
KCB gear pump data sheet
| Model | Caliber (Inch) |
Flow (L/min ) |
Pressure (MPa ) |
Suction Lift (m ) |
kcb gear pump with Motor power (KW ) |
| KCB-18.3 | 3/4 | 18.3 | 1.45 | 5 | 1.5 |

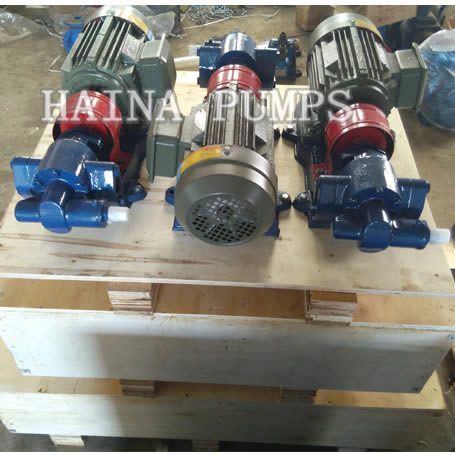

| KCB-33.3 | 3/4 | 33.3 | 1.45 | 5 | 2.2 |
| KCB-55 | 1″ | 55 | 0.33 | 5 | 1.5 |
| KCB-83.3 | 1 1/2″ | 83.3 | 0.33 | 5 | 2.2 |
| KCB-135 | 2″ | 135 | 0.33 | 5 | 4 |
| KCB-200 | 2″ | 200 | 0.33 | 5 | 4 |
| KCB-300 | 3″ | 300 | 0.33 | 5 | 5.5 |
| KCB483.3 | 3″ | 483.3 | 0.33 | 5 | 7.5 |
| KCB483.3 | 3″ | 483.3 | 1.0 | 5 | 11 |
| KCB-633 | 4″ | 633 | 0.28 | 5 | 11 |
| KCB-960 | 4″ | 960 | 0.3 | 5 | 18.5 |

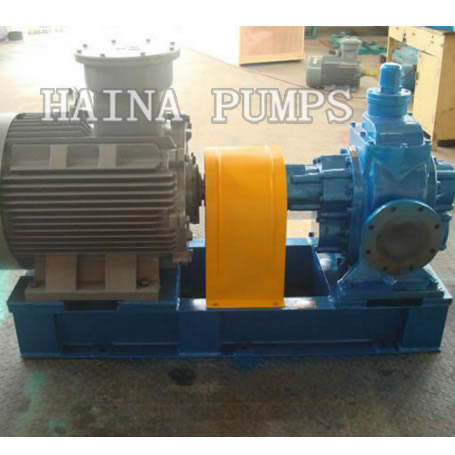

| KCB1200 | 6″ | 1200 | 0.6 | 3 | 37 |
| KCB1600 | 6″ | 1600 | 0.6 | 3 | 45 |
| KCB1800 | 8″ | 1800 | 0.6 | 2.5 | 55 |
| KCB2500 | 8″ | 2500 | 0.6 | 2.5 | 75 |

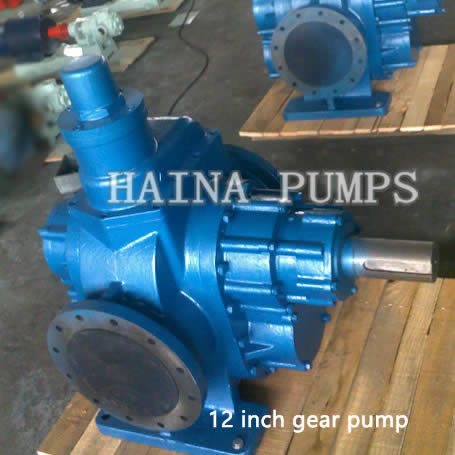

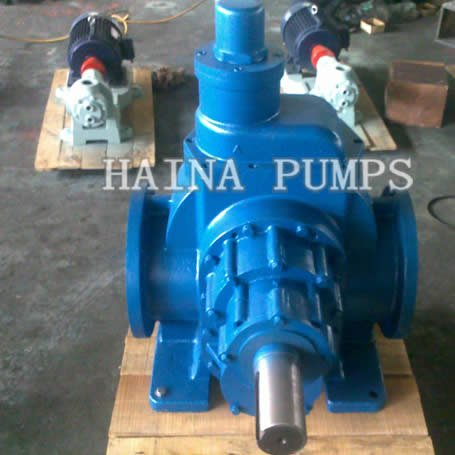

| KCB3800 | 10″ | 3800 | 0.6 | 2 | 110 |
| KCB5400 | 10″ | 5400 | 0.6 | 2 | 110 |
| KCB7600 | 14″ | 7600 | 0.6 | 2 | 200 |
| KCB9600 | 14″ | 9600 | 0.6 | 2 | 250 |
