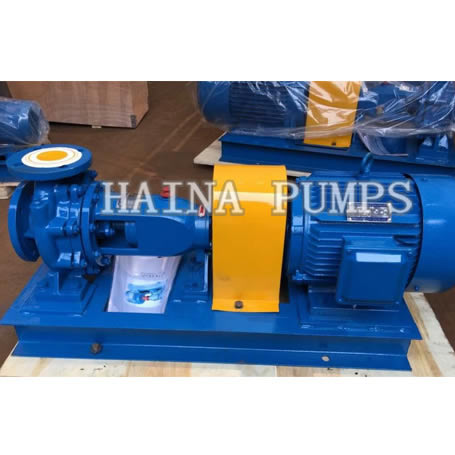

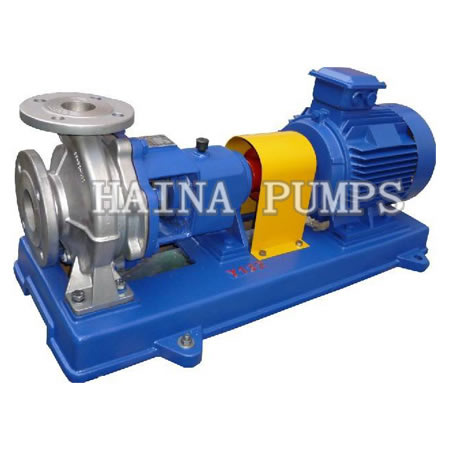

IH Chemical Pump

IH chemical pump Summary
IH chemical pump and conveyance medium contact flow components adopt 1Cr18Ni9Ti materials. It according to international standard ISO2858 design. This product is simple in structure, reliable performance, small volume, light weight,corrosion resistance, low power consumption, convenient operation and maintenance. Used to transport not containing solids, corrosive liquid.
Operating temperature: -40℃~140℃
IH series chemical pump can transport medium which is corrosive or polluting water like liquid, it is widely used for industry, oil, mineral, power station, food/paper/medicine/textile factory and waste water processing and environmental protection, the medium temperature is -20~ +140 degrees, if need, it can adopt double-end seal cooling unit, then can transport liquid with temperature from -20~+280 degrees.
Material: there are 4 kinds of materials for this pump, cast steel, ordinary stainless steel, 304SS, 316SS( these 2 are more suitable for corrosive liquid)
Flow Q: 6.3~400m3/h
Head: 5~132m
Speed: 2900/1450r/min
Power: 0.55~110KW
Inlet diameter: 50~200mm
Max working pressure: 1.6Mpa
IH chemical pump have 29 basic size, including 22 double speed(2900/1450r/min), after cutting then A/B two type of impellers, it can achieve 112 different sizes.

IH chemical pump data table

Model	Inlet	Outlet	Flow	Head	Motor		Material
	mm	mm	(m3/h)	(m)	Motor		Material
	mm	mm	(m3/h)	(m)	r/min	(KW)	304 SS 316 SS 316L SS S.S
IH25-25-125	25	25	4	20	2900	1.1
IH25-25-160	25	25	4	32	2900	1.5
IH32-25-125	32	25	5	20	2900	1.5
IH32-25-160	32	25	5	32	2900	2.2
IH32-25-200	32	25	5	50	2900	3
IH40-32-125	40	32	7	20	2900	1.5
IH40-32-160	40	32	7	32	2900	2.2
IH40-32-200	40	32	7	50	2900	4
IH50-32-125	50	32	12.5	20	2900	2.2
IH50-32-125	50	32	6.3	5	1450	0.55
IH50-32-160	50	32	12.5	32	2900	3
IH50-32-160	50	32	6.3	8	1450	0.55
IH50-32-200	50	32	12.5	50	2900	5.5
IH50-32-200	50	32	6.3	12.5	1450	0.75
IH50-32-250	50	32	12.5	80	2900	11
IH50-32-250	50	32	6.3	20	1450	1.5
IH65-50-125	65	50	25	20	2900	3
IH65-50-125	65	50	12.5	5	1450	0.55
IH65-50-160	65	50	25	32	2900	5.5
IH65-50-160	65	50	12.5	8	1450	0.75
IH65-40-200	65	40	25	50	2900	11
IH65-40-200	65	40	12.5	12.5	1450	1.1
IH65-40-250	65	40	25	80	2900	15
IH65-40-250	65	40	12.5	20	1450	2.2
IH65-40-315	65	40	25	125	2900	30
IH65-40-315	65	40	12.5	32	1450	4
IH80-65-125	80	65	50	20	2900	5.5
IH80-65-125	80	65	25	5	1450	0.75
IH80-65-160	80	65	50	32	2900	7.5
IH80-65-160	80	65	25	8	1450	1.1
IH80-50-200	80	50	50	50	2900	15
IH80-50-200	80	50	25	12.5	1450	2.2
IH80-50-250	80	50	50	80	2900	30
IH80-50-250	80	50	25	20	1450	4
IH80-50-315	80	50	50	125	2900	45
IH80-50-315	80	50	25	32	1450	5.5
IH100-80-125	100	80	100	20	2900	11
IH100-80-125	100	80	50	5	1450	1.5
IH100-80-160	100	80	100	32	2900	15
IH100-80-160	100	80	50	8	1450	2.2
IH100-65-200	100	65	100	50	2900	30
IH100-65-200	100	65	50	12.5	1450	4
IH100-65-250	100	65	100	80	2900	45
IH100-65-250	100	65	50	20	1450	5.5
IH100-65-315	100	65	100	125	2900	75
IH100-65-315	100	65	50	32	1450	11
IH125-100-200	125	100	200	50	2900	45
IH125-100-200	125	100	100	12.5	1450	7.5
IH125-100-250	125	100	200	80	2900	75
IH125-100-250	125	100	100	20	1450	11
IH125-100-315	125	100	200	125	2900	110
IH125-100-315	125	100	100	32	1450	18.5
IH125-100-400	125	100	100	50	1450	30
IH150-125-250	150	125	200	20	1450	18.5
IH150-125-315	150	125	200	32	1450	30
IH150-125-400	150	125	200	50	1450	55
IH200-150-250	200	150	400	20	1450	37
IH200-150-315	200	150	400	32	1450	55
IH200-150-400	200	150	400	50	1450	90
IH250-200-315	250	200	550	32	1450	75
IH250-200-450	250	200	600	60	1450	160
