Structure features:

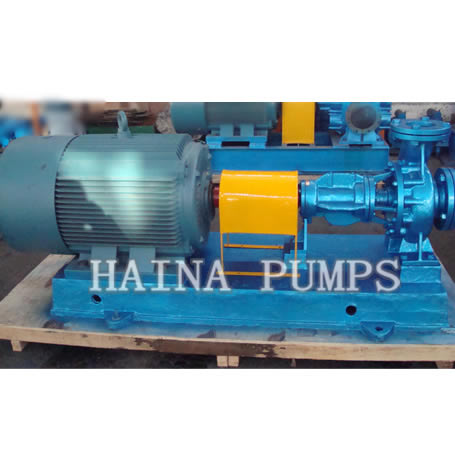

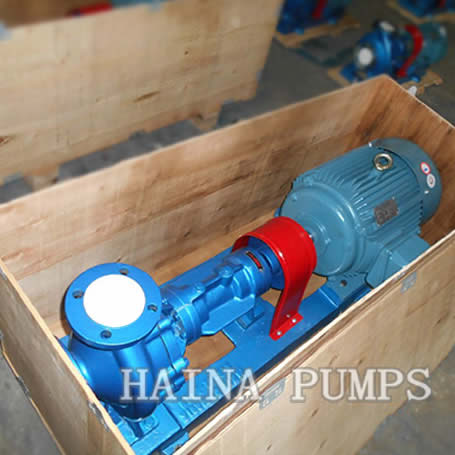

High temperature oil pump using the heat radiating structure, changed the conventional water cooling structure, make the simple structure, small volume, save operating cost, good performance, use and reliable, is our country on the basis of digesting and absorbing foreign oil pump of the second generation product, the basic structure for the single stage single suction cantilever feet support structure, import for axial pump suction, export as the center vertically upward, and the motor and load on the base.
High temperature oil pump support adopted the structure of double ball bearings, the front-end used lubricating oil, after the end lubricated by grease, with an oil conduit in the middle, to observe the conditions of sealing and recovery of heat conduction oil.
High temperature oil pump seal characteristics
Takes the form of packing seal and mechanical seal, packing, packing seal with high temperature resistance with good thermal adaptability, while the mechanical seal with high mechanical strength, good abrasion resistance of hard alloy material, ensure the sealing performance under high temperature conditions.
LQRY-65-50-200
LQRY——-high temperature oil pump
65———–pump inlet diameter (mm)
50———–pump outlet diameter (mm)
200———Pump impeller diameter (mm)
High temperature oil pump applied range:
Advanced high temperature oil pump technology, high efficiency, under the thermal state can long-term stable operation, no leakage, no additional cooling system, the use of safe and reliable characteristics of heating medium in our country has been widely used in the heating system, has entered the petroleum, chemical, rubber, plastics, pharmaceutical, textile, printing and dyeing, road construction, food, and other industrial applications, mainly used for conveying not weak corrosion of high temperature liquid containing solid particles, using temperature is 370 ℃ or less and is an ideal high temperature oil circulation pump.
| Model | Capacity m 3 /h |
Lift m |
Speed r/min |
Power kw | Efficiency η% |
High temperature oil pump with Motor | |
| Shaft power |
Power Distribution |
||||||
| 15-15-100 | 3 | 10 | 2800 | 0.45 | 0.75 | 20 | 801 |
| 15-15-100A | 2 | 10 | 2800 | 0.36 | 0.55 | 18 | AO2-7122 |
| 15-15-100B | 1 | 10 | 2800 | 0.2 | 0.37 | 15 | AO2-7112 |
| 20-20-100 | 1 | 10 | 2800 | 0.09 | 0.37 | 26 | AO2-7112 |
| 20-20-125 | 1.5 | 22 | 2800 | 0.22 | 0.75 | 30 | 801 |
| 40-25-160 | 10 | 28 | 2900 | 1.72 | 2.2 | 45 | 90L |
| 25-25-160 | 3 | 27 | 2900 | 0.53 | 1.5 | 30 | 90S |
| 32-32-160 | 6 | 28 | 2900 | 0.85 | 1.5 | 50 | 90S |
| 50-32-160 | 12.5 | 30 | 2900 | 1.90 | 3.0 | 57 | 100L |
| 50-32-200 | 18 | 40 | 2900 | 3.92 | 5.5 | 50 | 132Sl |
| 50-32-200A | 16 | 32 | 2900 | 3.35 | 4 | 42 | 112M |
| 50-32-250 | 12.5 | 80 | 2900 | 6.2 | 11 | 44 | 160Ml |
| 65-50-160 | 20 | 32 | 2900 | 3.17 | 5.5 | 55 | 132S1 |
| 65-40-200 | 30 | 48 | 2900 | 6.3 | 7.5 | 62 | 132S2 |
| 65-40-200A | 25 | 35 | 2900 | 4.0 | 5.5 | 59 | 132S1 |
| 65-40-250 | 25 | 80 | 2900 | 10.3 | 15 | 53 | 160M2 |
| 65-40-250A | 20 | 51 | 2900 | 5.67 | 7.5 | 49 | 132S2 |
| 65-40-315 | 25 | 125 | 2900 | 18.9 | 30 | 45 | 200L1 |
| 65-40-315A | 22.5 | 100 | 2900 | 15.3 | 22 | 40 | 180M |
| 80-50-200 | 50 | 50 | 2900 | 9.7 | 15 | 70 | 160M2 |
| 80-50-200A | 45 | 40 | 2900 | 7.8 | 11 | 63 | 160M1 |
| 80-50-200B | 40 | 32 | 2900 | 6.37 | 7.5 | 55 | 132S2 |
| 80-50-250 | 50 | 80 | 2900 | 17.1 | 22 | 58 | 180M |
| 80-50-250A | 43 | 60 | 2900 | 12.8 | 15 | 55 | 160M2 |
| 80-50-315 | 50 | 125 | 2900 | 30.4 | 45 | 56 | 225M |
| 80-50-315A | 45 | 100 | 2900 | 23.6 | 30 | 52 | 200L1 |
| 100-65-200 | 100 | 50 | 2900 | 18.4 | 22 | 74 | 180M |
| 100-65-200A | 94 | 44 | 2900 | 16 | 22 | 70 | 180M |
| 100-65-200B | 87 | 38 | 2900 | 13.8 | 15 | 65 | 160M2 |
| 100-65-200C | 80 | 32 | 2900 | 11.8 | 15 | 59 | 160M2 |
| 100-65-250 | 100 | 80 | 2900 | 32.06 | 37 | 68 | 200L2 |
| 100-65-250A | 95 | 72 | 2900 | 29 | 37 | 64 | 200L2 |
| 100-65-250B | 90 | 65 | 2900 | 26.2 | 30 | 61 | 200L1 |
| 100-65-250C | 85 | 50 | 2900 | 20.3 | 30 | 57 | 200L1 |
| 100-65-315 | 100 | 125 | 2900 | 50.06 | 75 | 68 | 280S |
| 100-65-315A | 95 | 113 | 2900 | 45.23 | 55 | 64.63 | 250M |
| 100-65-315B | 90 | 100 | 2900 | 40.5 | 55 | 60.50 | 250M |
| 100-65-315C | 82 | 84 | 2900 | 34.76 | 45 | 54 | 225M |
| 125-100-200 | 200 | 50 | 2900 | 35.4 | 45 | 77 | 225M |
| 125-100-200A | 178 | 40 | 2900 | 26.6 | 37 | 73 | 200L2 |
| 125-100-250 | 200 | 70 | 2900 | 47 | 55 | 80 | 250M |
| 125-100-250A | 190 | 63 | 2900 | 41.6 | 55 | 78 | 250M |
| 125-100-250B | 180 | 57 | 2900 | 37.9 | 45 | 74 | 225M |
| 125-100-250C | 170 | 51 | 2900 | 32.15 | 45 | 72 | 225M |
| 125-100-250D | 150 | 70 | 2900 | 40 | 45 | 70 | 225M |
| 150-150-200 | 350 | 50 | 2900 | 60 | 75 | 80 | 280S |
| 150-150-200A | 313 | 40 | 2900 | 45 | 55 | 76 | 250M |
| 200-150-400 | 350 | 50 | 1450 | 61.8 | 75 | 78 | 280S |
| 200-150-400A | 330 | 45 | 1450 | 52.8 | 75 | 77 | 280S |
| 250-200-400 | 500 | 50 | 1480 | 86.2 | 110 | 79 | 315S |
| 250-200-500 | 500 | 80 | 1480 | 136 | 160 | 76.5 | 315M |
| 250-200-500A | 400 | 50 | 1480 | 75 | 90 | 73 | 280M |
