Gasoline Transfer Pump

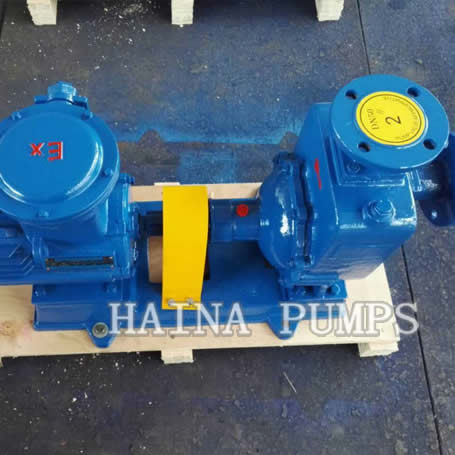

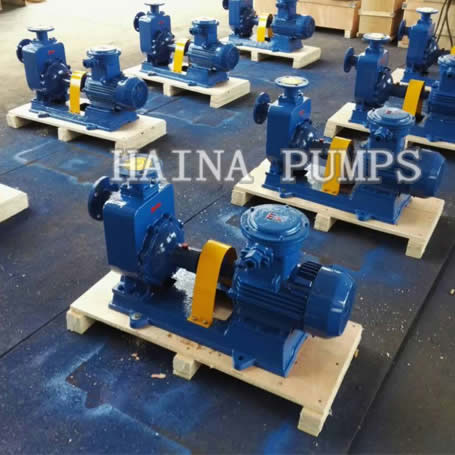

CYB-S Gasoline transfer pump equipped with explosion-proof motor, copper impeller, adopting integrated explosion-proof, apply to all kinds of light oil such as diesel, kerosene, gasoline pump, etc.Safety performance is far more than other types of gear pump, the pump is a centrifugal pump, high power efficiency is low, it will give you more can save cost in use.

CYB-S gasoline transfer pump working principle: indicators, mainly displays in the flow range: 3.2-800 m3 / h head range: 12-80 – m, in use according to certain parameters and flow.
Has a simple structure, convenient operation and maintenance, stable operation, large displacement, high efficiency, easy to adjust, widely used, etc.Used to transport gasoline, kerosene, diesel, jet fuel, methanol, ethyl benzene, light oil, oil products such as medium temperature in – 20 ℃ ~ + 80 ℃, the flow: 3 m3 / h – 800 m3 / h head: 10 m – 100 m.Pump is a kind of excellent Marine loading and unloading oil pump.And is suitable for the land oil transportation, oil depot, such as fuel oil storage device can also be used for transporting seawater, fresh water, etc.

Pump adopts the axial pump body structure of the liquid, the pump body is composed of suction chamber, liquid storage chamber, vortex chamber, the liquid hole, and other components of the gas-liquid separation chamber, pump bearings with single-row radial ball bearings, the pump at the bottom of the bearing body is equipped with cooling room, high and low voltage range with sealing ring, shaft end adopts mechanical seal.The performance of the centrifugal pump is inertia, gasoline transfer pump so can send medium is piped out due to the effect of centrifugal force.Before work, pump body and feed line must be tank filled with water into a vacuum, when the fast rotating impeller, vane promote water quickly spin, spin the water under the action of centrifugal force, fly away from the impeller, pump in the water is thrown, the center of the impeller part form the vacuum area.

No.	Model	Capacity		head m	Pump NPSH m	Self-priming min/5m	Speed r/min	Shaft power kw	Diameter mm	Gasoline transfer pump Motor
No.	Model	m 3 /h	L/min	head m	Pump NPSH m	Self-priming min/5m	Speed r/min	Shaft power kw	Diameter mm	Model	Power kw
1	CYB-S-25-27	3	50	27	3	3	2900	0.6	25	YB801-2	0.75
2	CYB-S-40-20	6.3	105	20	3.5	2	2900	0.88	40× 32	YB802-2	1.1
3	CYB-S-40-40	10	167	40	3.5	1.5	2900	2.8	50× 40	YB112M-2	4
4	CYB-S-50-12	15	250	12	3.5	2.5	2900	1.1	50	YB90S-2	1.5
5	CYB-S-50-20	18	300	20	3.5	2	2900	1.8	50	YB90L-2	2.2
6	CYB-S-50-35	14	233	35	3.5	1.5	2900	2.7	50	YB112M-2	4
7	CYB-S-50-50	12.5	208	50	3.5	1.5	2900	4.3	50	YB132S1-2	5.5
8	CYB-S-50-60	15	250	60	3.5	1.5	2900	6.3	50	YB132S2-2	7.5
9	CYB-S-50-75	20	333	75	3.5	1.5	2900	9.9	50	YB160M1-2	11
10	CYB-S-65-15	30	500	15	4	2	2900	1.92	65	YB100L-2	3
11	CYB-S-65-30	25	416	30	4	2	2900	3.2	65	YB112M-2	4
12	CYB-S-80-13	35	583	13	4	3.5	2900	1.9	80	YB100L-2	3
13	CYB-S-80-17	43	716	17	4	2	2900	3.1	80	YB112M-2	4
14	CYB-S-80-25	50	833	25	4	1.5	2900	5.2	80	YB132S2-2	7.5
15	CYB-S-80-32	50	833	32	4	1.5	2900	6.8	80	YB132S2-2	7.5
16	CYB-S-80-55	60	1000	55	4	1.5	2900	15.0	80	YB160L-2	18.5
17	CYB-S-80-70	60	1000	70	4	1.2	2900	20.1	80	YB180M-2	22
18	CYB-S-100-40	100	1667	40	4	2	2900	18.3	100	YB180M-2	22
20	CYB-S-100-65	100	1667	65	4	2	2900	27.7	100	YB200L1-2	30
21	CYB-S-100-75	70	1167	75	4	2	2900	24.2	100	YB200L1-2	30
22	CYB-S-150-55	160	2667	55	5	2	2900	38.1	150	YB225M-2	45
23	CYB-S-150-65	170	2833	65	5	1.3	1470	51.0	150	YB250M-4	55
24	CYB-S-200-63	280	4667	63	5	1.5	1480	75.1	200	YB280M-4	90
25	CYB-S-250-50	400	6666	50	6	1.5	1480	77.2	250	YB280M-4	90
26	CYB-S-300-50	500	8333	50	5	2	1450	77.2	300	YB280M-4	90
27	CYB-S-300-32	600	9999	32	5	2	1450	77.2	300	YB280M-4	90
28	CYB-S-300-20	800	13333	20	5	2	1450	77.2
