Product summarize

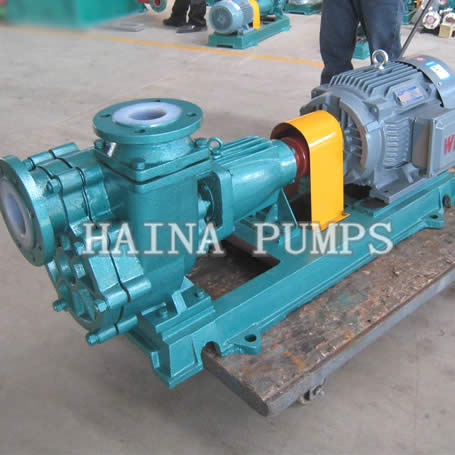

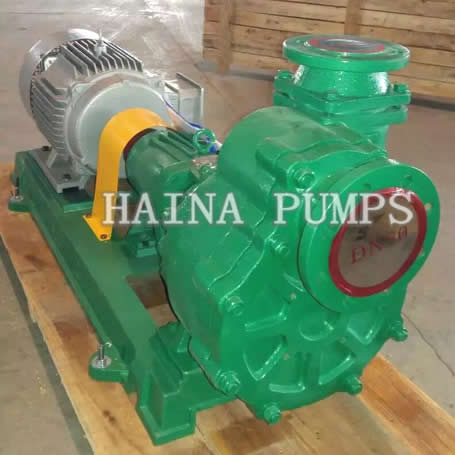

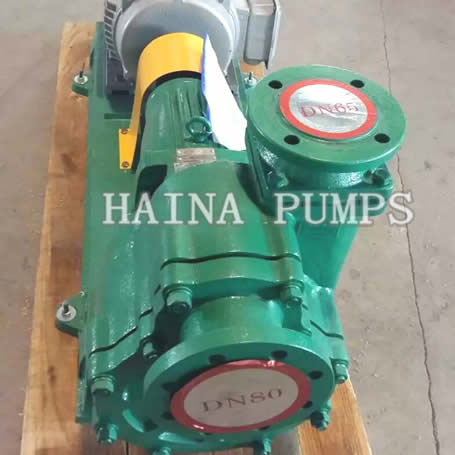

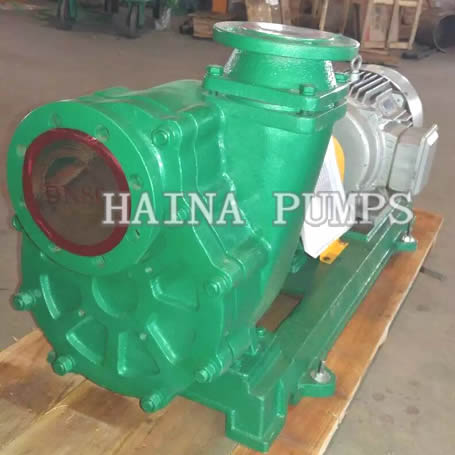

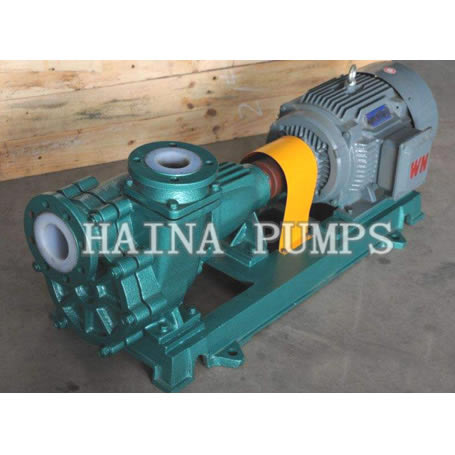

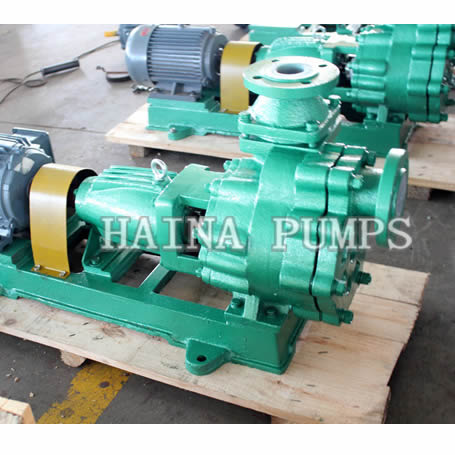

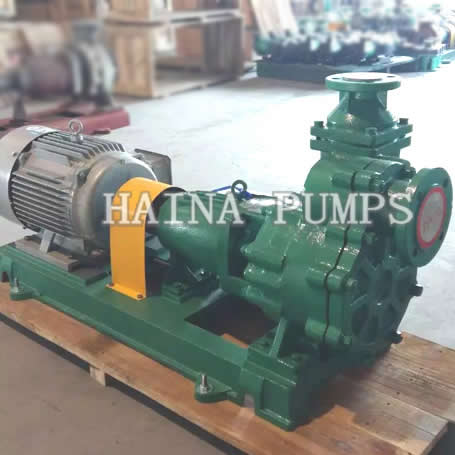

FZB fluoroplasitc lined chemical pump flow components are made by fluorine plastic seal, adopts advanced externally mounted bellows mechanical seal, easy adjustable. A new generation ofstrong corrosion resistance self-priming pumps.FZB pump manufacturer is china haina pumps, It shigh in a 3-4 meters (medium for water), common centrifugal pump, water pollution shall be installed,bottom valve inconvenience. Widely used in pickling process, acid and alkali manufacturing, chemical,pesticide, papermaking, electronic industries.
Operating temperature: -20℃~100℃
FZB fluoroplasitc lined chemical pump Model and technical data
| Model | Flow m3/h | Head M |
efficiency % | NPSH m |
FZB pump
Inlet×Outlet mm |
Self-Priming Hight (m) | Motor KW |
Weight Kg |
| 25FZB-20L | 1.5 | 19 | 10 | 3.0 | 25×25 | 1 | 2.2 | 65 |
| *3.6 | 18 | 20 | ||||||
| 6 | 16 | 30 | ||||||
| 40FZB-20 | 5 | 22 | 35 | 3.0 | 40×50 | 1 | 3 | 47 |
| *8 | 20 | 42 | ||||||
| 12 | 17 | 40 | ||||||
| 40FZB-30L | 5 | 32 | 24 | 3.5 | 40×50 | 3 | 4 | 160 |
| *8 | 30 | 48 | ||||||
| 12 | 28 | 45 | ||||||
| 50FZB-20 | 8 | 22 | 35 | 3.0 | 50×50 | 1 | 3 | 47 |
| *12 | 20 | 42 | ||||||
| 15 | 17 | 40 | ||||||
| 50FZB-30L | 8 | 32 | 24 | 3.5 | 50×50 | 3 | 4 | 160 |
| *12 | 30 | 48 | ||||||
| 15 | 28 | 45 | ||||||
| 50FZB-45L | 8 | 47 | 24 | 3.5 | 50×32 | 3 | 7.5 | 210 |
| *12 | 45 | 35 | ||||||
| 15 | 43 | 32 | ||||||
| 50FZB-70L | 8 | 72 | 20 | 4.0 | 50×32 | 3 | 15 | 320 |
| *12 | 70 | 26 | ||||||
| 25 | 65 | 39 | ||||||
| 60FZB-30L | 15 | 32 | 40 | 4.0 | 65×50 | 3 | 7.5 | 210 |
| *25 | 30 | 55 | ||||||
| 35 | 27 | 48 | ||||||
| 65FZB-45L | 15 | 47 | 30 | 4.0 | 65×40 | 3 | 11 | 300 |
| *25 | 45 | 42 | ||||||
| 35 | 38 | 44 | ||||||
| 65FZB-70L | 15 | 72 | 30 | 4.0 | 65×40 | 3 | 30 | 530 |
| *25 | 70 | 41 | ||||||
| 35 | 65 | 42 | ||||||
| 80FZB-30L | 35 | 32 | 54 | 4.5 | 80×65 | 3 | 11 | 284 |
| *50 | 30 | 58 | ||||||
| 60 | 25 | 48 | ||||||
| 80FZB-45L | 35 | 47 | 45 | 4.5 | 80×65 | 3 | 15 | 330 |
| *50 | 45 | 53 | ||||||
| 60 | 42 | 46 | ||||||
| 80FZB-70L | 35 | 72 | 45 | 5.0 | 80×50 | 3 | 30 | 550 |
| *50 | 70 | 50 | ||||||
| 60 | 65 | 43 | ||||||
| 100FZB-30L | 65 | 32 | 54 | 6.0 | 100×80 | 3 | 18.5 | 390 |
| *100 | 30 | 60 | ||||||
| 110 | 26 | 54 | ||||||
| 100FZB-45L | 65 | 46 | 48 | 6.0 | 100×80 | 3 | 30 | 500 |
| *100 | 45 | 55 | ||||||
| 110 | 40 | 48 |
