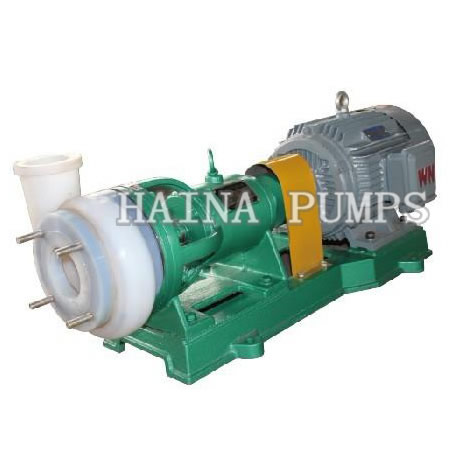

FP Anticorrosive Centrifugal Pump Summary:
FP anticorrosive centrifugal pump, pump shaft and impeller using one-time injection molding. Medium does not contact with metal, using mechanical seal, non-toxic pollution, high efficiency, low price, long service life and other advantages. Suitable for general corrosive liquid without solid particles, RPP material can work in the temperature range of -15℃~80℃, ideal product.
FP Anticorrosive Centrifugal Pump Performance Parameters:
| Pump name | FP corrosion-resistant plastic pump |
| Type | FP, FPZ, |
| Model | FP20-15-100/105, FP32-25-100/104, FP32-25-105/103, FP40-32-125/102, FP50-40-130/101.5, FP65-50-150/101, 80FP-28, 80FP-32. |
| Manufacturer | BOTOU HAINA PUMPS CO.,LTD |
| Working Principle | Centrifugal, Self-priming, Vortex |
| Applications | Chemical Industry, Pharmacy, Acid Cleaning, Farm Chemicals,waste water treatment,etc. |
| Driver | Electric |
| Working Temperature | 14°C ~ 80°C |
| Type of connection | Flange, Thread, Quick coupled |
| Installation position | Horizontal，Vertical |
| Pump body | Reinforced GFR-PP |
| Shaft seal: | Straight association-like |
| Power | 0.75KW ~ 7.5KW |
| Caliber: | 20mm ~ 80mm |
| Flow | 3m3/h ~ 50m3/h |
| Head | 7m ~ 32m |
| Pressure | 0.7 ~ 3.2bar |
| Product Features | FP corrosion-resistant plastic pump is widely used in chemical industry, food, brewing, pharmaceutical, electroplating, papermaking, environmental protection, water treatment and other departments, conveying acid, alkali, salt and other corrosive liquids. The 104 model is used 220V voltage, can be used in the family. |
