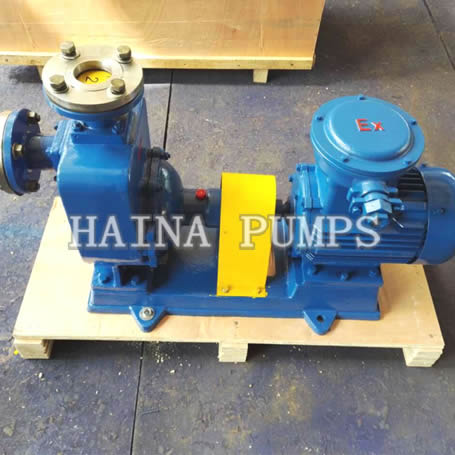

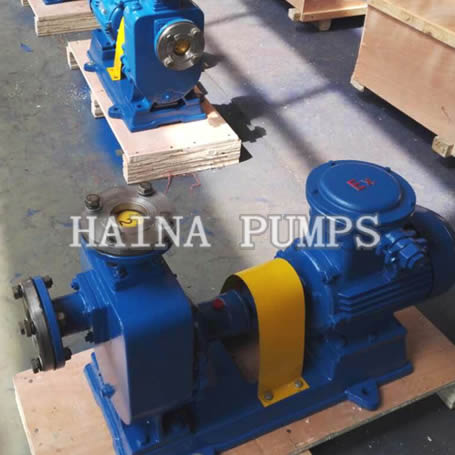

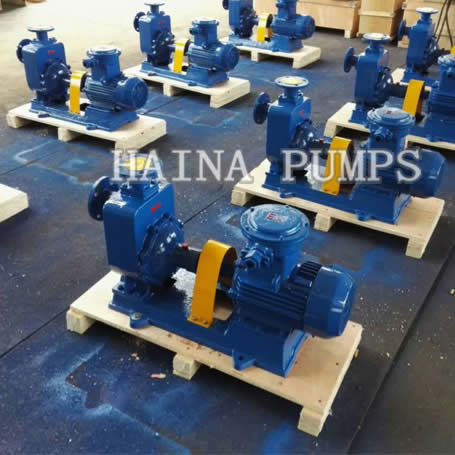

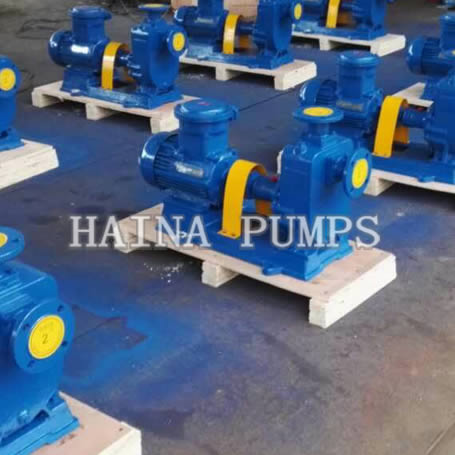

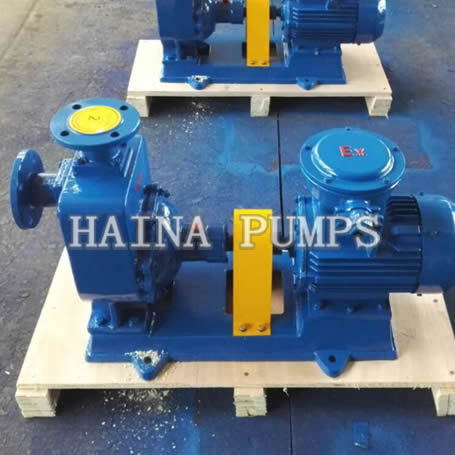

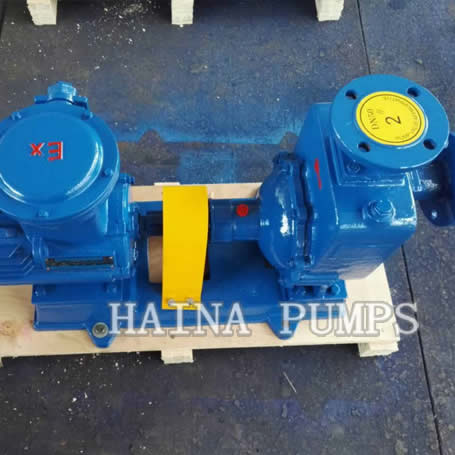

CYB-S series explosion-proof oil pump used to transport gasoline, kerosene, diesel, kerosene and other petroleum products.Medium temperature in – 20 ℃ ~ + 80 ℃, it is a good ship loading and unloading of oil pump.And is suitable for the tank farm land, such as fuel oil storage device of oil transportation.Can also be used for transporting seawater, fresh water, etc.
Feature
CYB-S series explosion-proof oil pump has a simple structure, convenient operation and maintenance, stable operation, large displacement, jiao rate is high, easy to adjust, widely used, etc.
structural
CYB-S series explosion-proof oil pump adopts the axial back to liquid pump body structure, the pump body by suction chamber, liquid storage chamber, vortex chamber, the liquid, gas-liquid separation chamber, etc.Pump bearings with single-row radial ball bearings.In the pump at the bottom of the bearing body is equipped with cooling room, internal high and low pressure pump interval has a sealing ring.CYB-S self-priming centrifugal pump shaft end adopts mechanical seal.
| No. | Model | Capacity | head m |
Pump NPSH m |
Self-priming min/5m |
Speed r/min |
Shaft power kw |
Diameter mm |
Motor | ||
| m 3 /h | L/min | Model | Power kw |
||||||||
| 1 | CYB-S-25-27 | 3 | 50 | 27 | 3 | 3 | 2900 | 0.6 | 25 | YB801-2 | 0.75 |
| 2 | CYB-S-40-20 | 6.3 | 105 | 20 | 3.5 | 2 | 2900 | 0.88 | 40× 32 | YB802-2 | 1.1 |
| 3 | CYB-S-40-40 | 10 | 167 | 40 | 3.5 | 1.5 | 2900 | 2.8 | 50× 40 | YB112M-2 | 4 |
| 4 | CYB-S-50-12 | 15 | 250 | 12 | 3.5 | 2.5 | 2900 | 1.1 | 50 | YB90S-2 | 1.5 |
| 5 | CYB-S-50-20 | 18 | 300 | 20 | 3.5 | 2 | 2900 | 1.8 | 50 | YB90L-2 | 2.2 |
| 6 | CYB-S-50-35 | 14 | 233 | 35 | 3.5 | 1.5 | 2900 | 2.7 | 50 | YB112M-2 | 4 |
| 7 | CYB-S-50-50 | 12.5 | 208 | 50 | 3.5 | 1.5 | 2900 | 4.3 | 50 | YB132S1-2 | 5.5 |
| 8 | CYB-S-50-60 | 15 | 250 | 60 | 3.5 | 1.5 | 2900 | 6.3 | 50 | YB132S2-2 | 7.5 |
| 9 | CYB-S-50-75 | 20 | 333 | 75 | 3.5 | 1.5 | 2900 | 9.9 | 50 | YB160M1-2 | 11 |
| 10 | CYB-S-65-15 | 30 | 500 | 15 | 4 | 2 | 2900 | 1.92 | 65 | YB100L-2 | 3 |
| 11 | CYB-S-65-30 | 25 | 416 | 30 | 4 | 2 | 2900 | 3.2 | 65 | YB112M-2 | 4 |
| 12 | CYB-S-80-13 | 35 | 583 | 13 | 4 | 3.5 | 2900 | 1.9 | 80 | YB100L-2 | 3 |
| 13 | CYB-S-80-17 | 43 | 716 | 17 | 4 | 2 | 2900 | 3.1 | 80 | YB112M-2 | 4 |
| 14 | CYB-S-80-25 | 50 | 833 | 25 | 4 | 1.5 | 2900 | 5.2 | 80 | YB132S2-2 | 7.5 |
| 15 | CYB-S-80-32 | 50 | 833 | 32 | 4 | 1.5 | 2900 | 6.8 | 80 | YB132S2-2 | 7.5 |
| 16 | CYB-S-80-55 | 60 | 1000 | 55 | 4 | 1.5 | 2900 | 15.0 | 80 | YB160L-2 | 18.5 |
| 17 | CYB-S-80-70 | 60 | 1000 | 70 | 4 | 1.2 | 2900 | 20.1 | 80 | YB180M-2 | 22 |
| 18 | CYB-S-100-40 | 100 | 1667 | 40 | 4 | 2 | 2900 | 18.3 | 100 | YB180M-2 | 22 |
| 20 | CYB-S-100-65 | 100 | 1667 | 65 | 4 | 2 | 2900 | 27.7 | 100 | YB200L1-2 | 30 |
| 21 | CYB-S-100-75 | 70 | 1167 | 75 | 4 | 2 | 2900 | 24.2 | 100 | YB200L1-2 | 30 |
| 22 | CYB-S-150-55 | 160 | 2667 | 55 | 5 | 2 | 2900 | 38.1 | 150 | YB225M-2 | 45 |
| 23 | CYB-S-150-65 | 170 | 2833 | 65 | 5 | 1.3 | 1470 | 51.0 | 150 | YB250M-4 | 55 |
| 24 | CYB-S-200-63 | 280 | 4667 | 63 | 5 | 1.5 | 1480 | 75.1 | 200 | YB280M-4 | 90 |
| 25 | CYB-S-250-50 | 400 | 6666 | 50 | 6 | 1.5 | 1480 | 77.2 | 250 | YB280M-4 | 90 |
| 26 | CYB-S-300-50 | 500 | 8333 | 50 | 5 | 2 | 1450 | 77.2 | 300 | YB280M-4 | 90 |
| 27 | CYB-S-300-32 | 600 | 9999 | 32 | 5 | 2 | 1450 | 77.2 | 300 | YB280M-4 | 90 |
| 28 | CYB-S-300-20 | 800 | 13333 | 20 | 5 | 2 | 1450 | 77.2 | |||
Thank you for your attention to our products, if you want to get further understanding, such as Explosion-proof oil pump，gasoline pump,kerosene pump,diesel pump specifications for more information, welcome to contact us at any time, invite sincerely provide you with the most satisfactory service!
