Material : HT200/QT250/SS304/SS316C-Type-Non-Clog-Self-Priming-Sewage-Pumps-Haina-Pumps
DN:2″~12″
Flow:3~5700GPM
Lift:2~60PSI
Power:1~125HP
Frequency:50HZ/60HZ

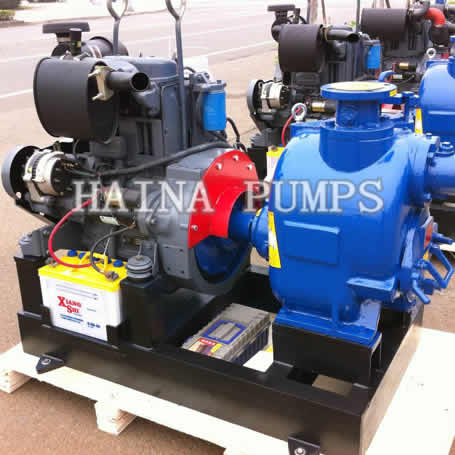

Drive Mode:Motor Or diesel engine
Application
1.Municipal Project, Sewage Project, Instruction Project
2.Transportation of the sewage of uptown
3.Sewage transportation in Hospital, hotel and so on
4.Classification of municipal sewage treatment factory and concentrate treatment systems engineering.
5.Transportation of the factory and contaminated water

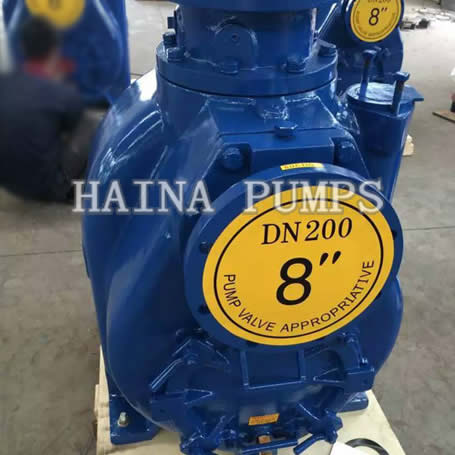

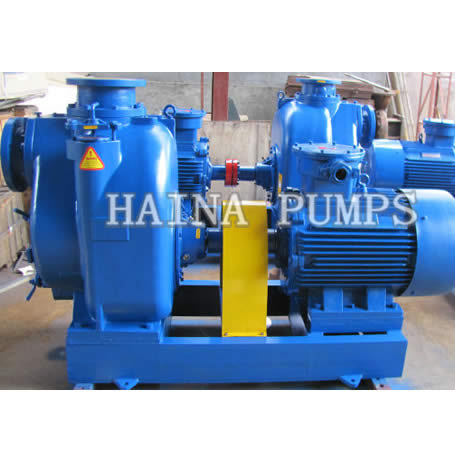

C Model Self Priming Non-Clogging Centrifugal Sewage Pumps with a wear plate, convenient impeller under normal wear condition, from convenient decontamination imports below the mouth, the adjusting plateThe need to remove the pipe or pump cavity case can be adjusted directly.Widely used in municipal sewage pond aquaculture, waste treatment,precipitation abandoned mine impurity, impurity pump light,papermaking, food, chemical, pharmaceutical,power, andother chemical slurry mixture quality thought.
C Model Self Priming Non-Clogging Sewage Pumps compared with the domestic similar products, the structure is more humane,good self-priming performance, (self-suction height is 7.6m), sewage capability.High efficiency and energy saving, maintenance is convenient for a characteristic, in the sewage pump series products are the domestic origination. The indicators of lead at home to reach the international advanced level. It has the development prospects of wide application market.
Solides Handing impeller
Two-vane, semi-open, solids handling impeller handles up to 3″ (76 mm) diameter solids, depending on pump model. Pump out vanes on impeller shroud reduce foreign material buildup behind impeller and reduce pressure on seal and bearings for extended pump life.
Exclusive Abrasion-Resistant Ssal
Exclusive double-floating, self-aligning oil lubricated mechanical cartridge seal with stationary and rotating face of silicon carbide is specifically designed for abrasive industrial wastewater service.
Removable Cover Plate
Removable cover plate provides quick and easy access to pump interior without disconnecting piping. Clogs can be removed and pump returned to service in minutes. Impeller, seal, wearplate and flap valve can also be accessed through cover plate opening for inspection or service.
Replaceable Wear plate
C Series pumps feature replaceable wear plates which fasten to the cover plate and can easily be rem
C Model Self Priming Non-Clogging Sewage Pumps Removable Rotating Assembly
Removal of rotating assembly allows easy inspection of pump shaft or bearings without disturbing pump casing or piping. On most models, simply remove four bolts from the back of the pump and the rotating assembly slides out.
