Overview:

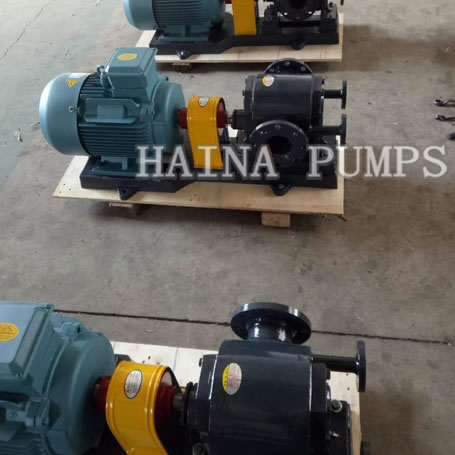

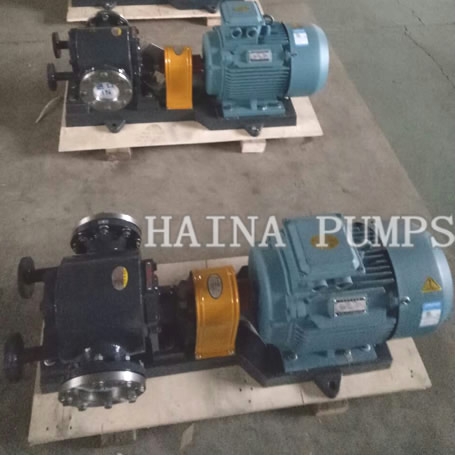

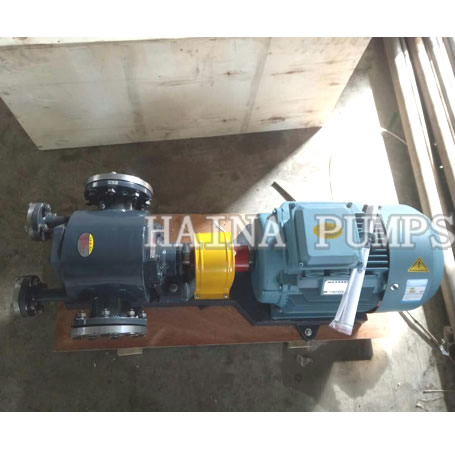

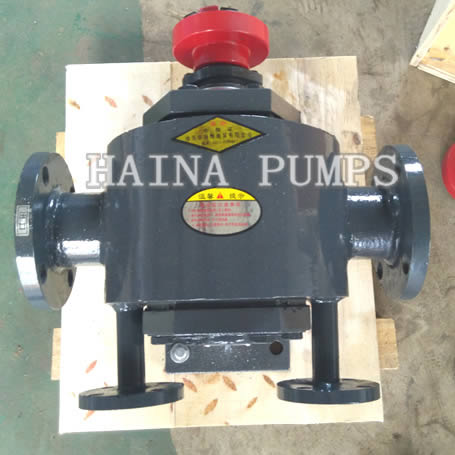

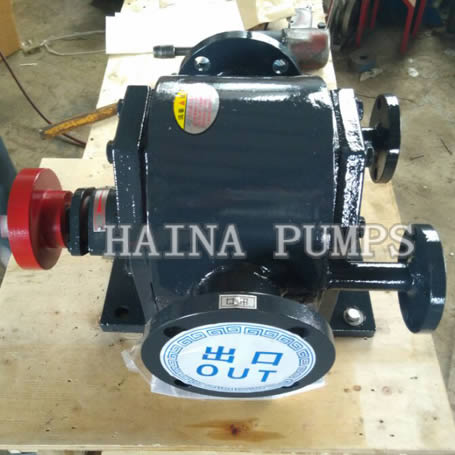

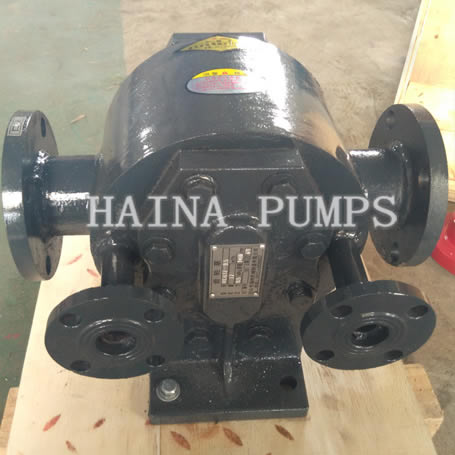

GA series asphalt gear pump with jacketed，Heat the pump by steam, hot water, hot oil.Flow 1 to 570 cubic meters per hour, the discharge pressure is less than 1.0 MPA,The working temperature is less than 400 degrees centigrade.
Asphalt gear pump is applicable to transport non-corrosive, not containing solid particles, at room temperature with coagulability medium, especially in cold area outdoor media need to heat preservation in the process of installation and process, medium temperature can reach 400 ℃, the viscosity of 5 to 1500 CST.
| Type | Calibermm | Flow | discharge pressureMpa | Speedr/min | Asphalt gear pumpWith motor | |
| L/min | KW | Motor type | ||||
| GA-33/0.6 | 25 | 33 | 0.6 | 1000 | 1.5 | Y100L-6 |
| GA-50/0.6 | 25 | 50 | 0.6 | 1500 | 2.2 | Y100L-4 |
| GA-80/0.6 | 40 | 80 | 0.6 | 1000 | 4.0 | 132M-6 |
| GA-125/0.6 | 40 | 125 | 0.6 | 1500 | 5.5 | 132S-4 |
| GA-125/0.6 | 50 | 125 | 0.6 | 1000 | 4.0 | 132M-6 |
| GA-200/0.6 | 50 | 200 | 0.6 | 1500 | 5.5 | 132S-4 |
| GA-300/0.6 | 80 | 300 | 0.6 | 1000 | 7.5 | 160M-6 |
| GA-300/0.4 | 80 | 300 | 0.4 | 1000 | 5.5 | 132M-6 |
| GA-480/0.4 | 80 | 480 | 0.4 | 1500 | 7.5 | 132M-4 |
| GA-480/0.6 | 80 | 480 | 0.6 | 1500 | 11 | 160M-4 |
| GA-630/0.4 | 100 | 630 | 0.4 | 1000 | 11 | 160L-6 |
| GA-960/0.4 | 100 | 960 | 0.4 | 1500 | 18.5 | 180M-4 |
If you have any questions about the asphalt gear pump.Please contact china haina pumps!
