GA series Asphalt gear pump application
It applies to delivery the medium without causticity,not including solid particle and has solidifiability under the normal temperature. It especially used for the condition that the medium required to keep heat in outdoor installation at cold region. The temperature of medium could reach to 450°C. The viscosity is 5-1500CSt.
Asphalt gear pump Usage
It applies to deliver the dead oil, asphalt, glue, resin and scour etc.
Asphalt gear pump characteristics

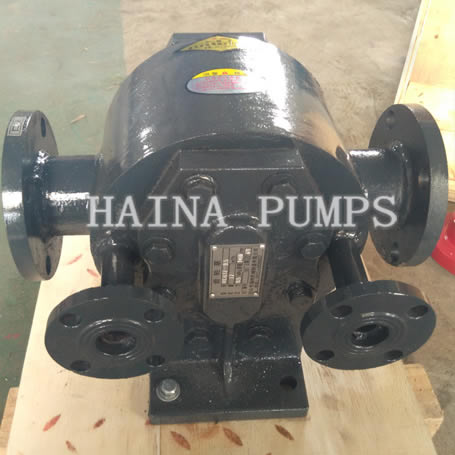

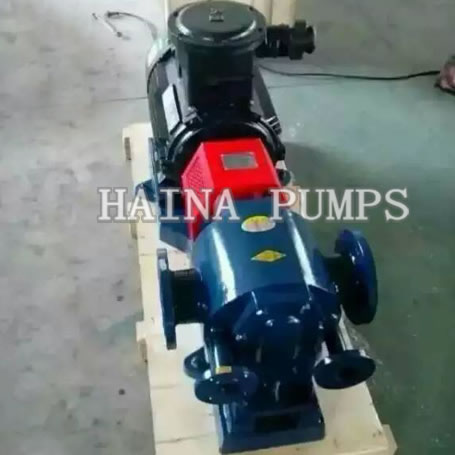

The hollow sandwich and flange with inlet and outlet were set on the body of pump. It used in heating or cooling and keeping heat for liquid and pump when delivering the heat-conducting oil, steam and hot water.
Asphalt gear pump data sheet
| Type | Caliber
mm |
Flow | discharge pressure
Mpa |
Speed
r/min |

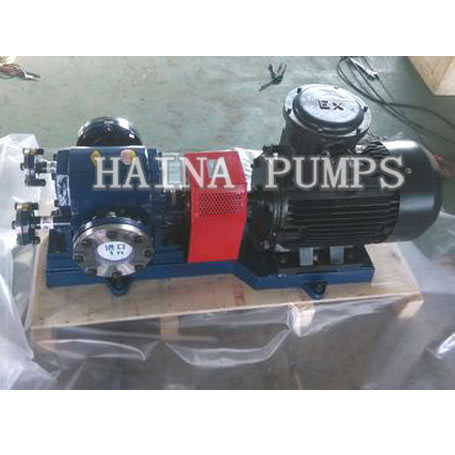

Asphalt gear pump
With motor |
|
| L/min | KW | Motor type | ||||
| GA-33/0.6 | 25 | 33 | 0.6 | 1000 | 1.5 | Y100L-6 |
| GA-50/0.6 | 25 | 50 | 0.6 | 1500 | 2.2 | Y100L-4 |
| GA-80/0.6 | 40 | 80 | 0.6 | 1000 | 4.0 | 132M-6 |
| GA-125/0.6 | 40 | 125 | 0.6 | 1500 | 5.5 | 132S-4 |
| GA-125/0.6 | 50 | 125 | 0.6 | 1000 | 4.0 | 132M-6 |
| GA-200/0.6 | 50 | 200 | 0.6 | 1500 | 5.5 | 132S-4 |
| GA-300/0.6 | 80 | 300 | 0.6 | 1000 | 7.5 | 160M-6 |
| GA-300/0.4 | 80 | 300 | 0.4 | 1000 | 5.5 | 132M-6 |
| GA-480/0.4 | 80 | 480 | 0.4 | 1500 | 7.5 | 132M-4 |
| GA-480/0.6 | 80 | 480 | 0.6 | 1500 | 11 | 160M-4 |
| GA-630/0.4 | 100 | 630 | 0.4 | 1000 | 11 | 160L-6 |
| GA-960/0.4 | 100 | 960 | 0.4 | 1500 | 18.5 | 180M-4 |
