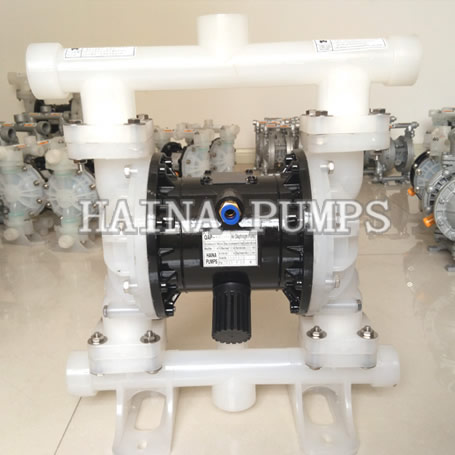

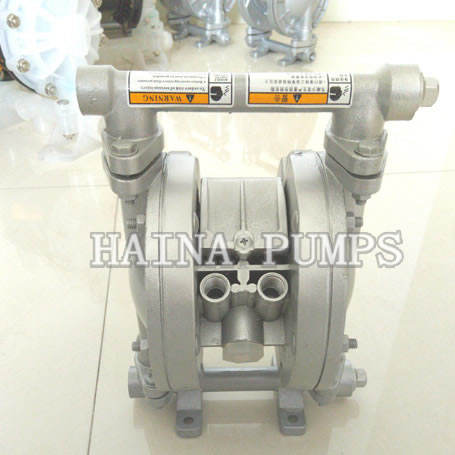

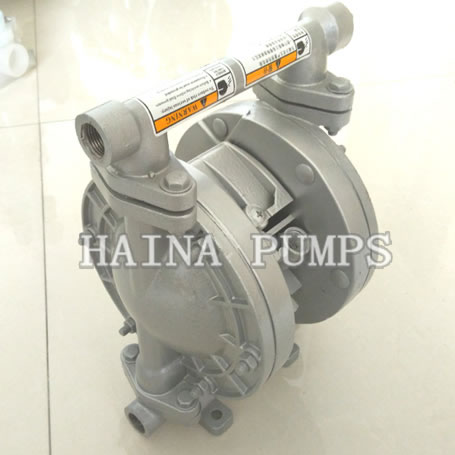

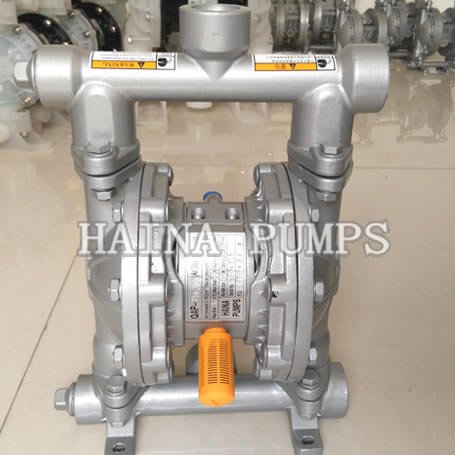

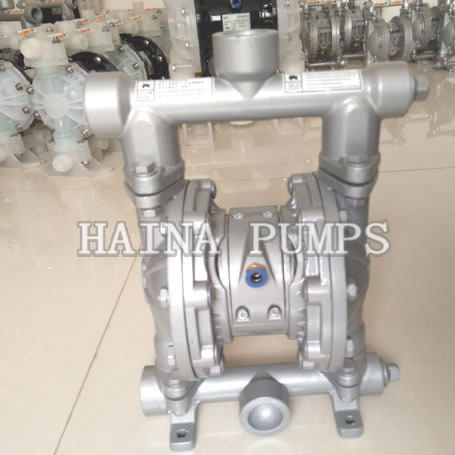

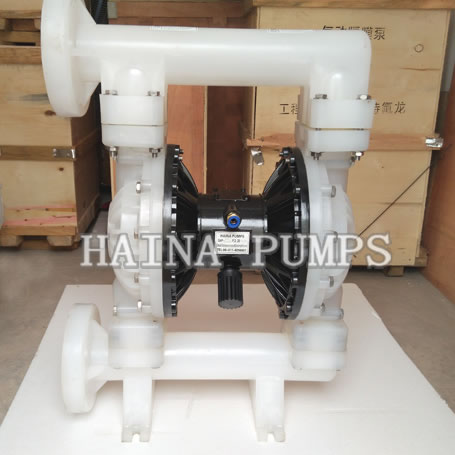

Thank you for purchasing our company’s ADD air diaphragm pump.The series is the main product of Sino-U.S.cooperation on technology,which takes fully advantage of U.S technology and is made in China.The design of product is reasonable-no seal,explosion-proof,easy maintenance,allow idle operating,light weight,self-absorption start,multi-material choice and so on.
Air diaphragm pumps (ADD series) the price is lower than PX series，china haina pumps is air diaphragm pumps sale and manufacturer.If you use HaiNa pump at the first time,please look over the operating instruction carefully to make sure you can fully enjoy the powerful function that the device brings to you.You can also refer to the related instructions and parameters online. Haina will devote to improving pump quality and optimizing function.
The right of interpretation and revision of this instruction belongs to our company.
Air Diaphragm Pump Type Meaning
| Model | Max.Flow (L/min) |
Max.Lift (m) |
Max.Suction Lift (m) |
Outlet Pressure (kg) |
Caliber (mm) |
Particle Diameter (mm) |
| ADD-10 | 18.9 | 70 | 2.5-3 | 7 | 10 | 1.5 |
| ADD-15 | 18.9 | 70 | 2.5-3 | 7 | 15 | 1.5 |
| ADD-20 | 57 | 70 | 4.5-7.6 | 7 | 20 | 2.5 |
| ADD-25 | 57 | 70 | 4.5-7.6 | 7 | 25 | 2.5 |
| ADD-25A | 151 | 84 | 5.4 | 8.4 | 25 | 3.2 |
| ADD-32 | 151 | 84 | 5.4 | 8.4 | 32 | 3.2 |
| ADD-40 | 151 | 84 | 5.4 | 8.4 | 40 | 3.2 |
| ADD-50 | 378.5 | 84 | 5.48 | 8.4 | 50 | 5.48 |
| ADD-65 | 378.5 | 84 | 5.48 | 8.4 | 65 | 5.48 |
| ADD-80 | 568 | 84 | 5.48 | 8.4 | 80 | 6.3 |
| ADD-100 | 568 | 84 | 5.48 | 8.4 | 100 | 6.3 |
| ADD-125 | 1041 | 84 | 2.4-7.6 | 8.4 | 125 | 10 |
| ADD-150 | 1041 | 84 | 2.4-7.6 | 8.4 | 150 | 10 |
Air Diaphragm Pump Material：
| Diaphragm Pump | ADD series Air Diaphragm Pump |
| Fluid inlet& outlet size |
10mm=3/8 inch (Dia.) 15mm=1/2 inch (Dia.) 20mm=3/4 inch (Dia.) 25mm=1 inch (Dia.) 32mm=1 1/4 inch (Dia.) 40mm=1 1/2 inch (Dia.) 50mm=2 inch (Dia.) 65mm=2 1/2 inch (Dia.) 80mm=3 1/4 inch (Dia.) 100mm=4 inch (Dia.) |
| Material of wetted part |
G=cast steel L=aluminum alloy S=engineering plastic P=304 stainless steel P316=316 stainless steel P316L=316L stainless steel F=PTFE |
| Material of valve ball |
D=NBR L=chloroprene rubber F=PTFE G=steel |
| Material of valve seat |
J=polyethylene plastic seat D=NBR L=chloroprene rubber F=PTFE S=EPDM rubber |
| Material of diaphragm |
J=polyethylene rubber diaphragm D=NBR diaphragm L=chloroprene rubber V=Viton F=Teflon(PTFE) S=EPD M rubber |
